Overview - Exterior Door Handle Lamps

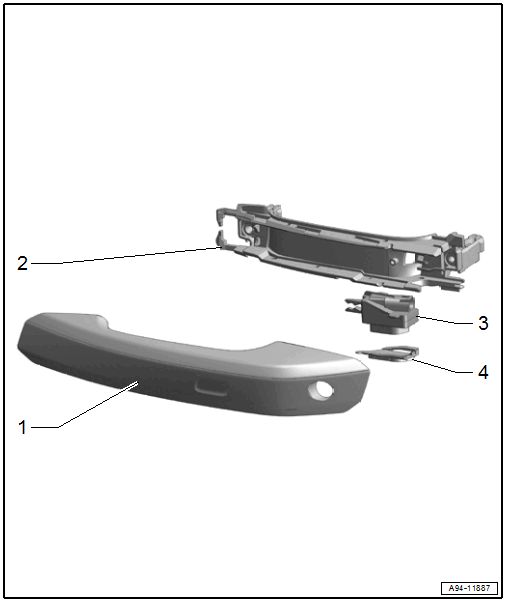

Fig 1: Exploded View Of Exterior Door Handle Lamps

GWWA94-11887

Courtesy of AUDI OF AMERICA, LLC

Exterior Door Handle Trim
Exterior Door Handle
Exterior Door Handle Illumination Bulb
- Front exterior door handle
  - Left Front Exterior Door Handle Illumination Bulb -L162-
  - Right Front Exterior Door Handle Illumination Bulb -L163-
- Rear exterior door handle
  - Left Rear Exterior Door Handle Illumination Bulb -L168-
  - Right Rear Exterior Door Handle Illumination Bulb -L169-
- Removing and installing. Refer to EXTERIOR DOOR HANDLE ILLUMINATION BULB, REMOVING AND INSTALLING .
Diffusion Lens
- For exterior door handle illumination bulb
