Tail Lamp, Removing And Installing, AVANT: Removing
-- Turn the light switch to position "0".
Before Product Improvement:
-- Insert the screwdriver -3- into the opening and release the lower catch in direction of -arrow A-.
-- Grip between the cover -2- and the tail lamp -1- and release the remaining catches.
-- Remove the cover from the tail lamp in the direction of -arrow B-.
TIP:
From Product Improvement:
-- To release the catches on the cover -2-, push the cover by hand on the edge forward in direction of -arrows-.
-- Remove the cover from the tail lamp -1-.
Continuation:

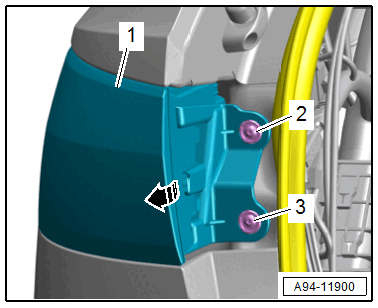

-- Remove the bolts -2 and 3-.
-- Remove the tail lamp -1- from the clip nut in the direction of -arrow-.
-- Disconnect the connector.
