Component Location Overview - Rear Keyless Access Authorization System

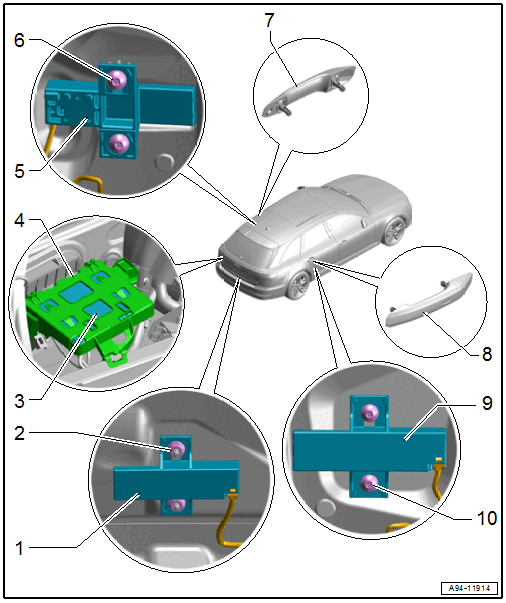

Fig 1: Component Location Rear Keyless Access Authorization System

Courtesy of AUDI OF AMERICA, LLC

1. Access/Start System Antenna In Luggage Compartment -R137-
   • Removing and installing. Refer to Access/Start System Antenna in Luggage Compartment -R137-, REMOVING AND INSTALLING .
2. Nut
   • 2 Nm
   • Quantity: 2
3. Comfort System Central Control Module -J393-
   • Removing and installing. Refer to COMFORT SYSTEM CENTRAL CONTROL Module -J393-, REMOVING AND INSTALLING .
4. Bracket
   • For the comfort system central control Module
5. Left Access/Start Authorization Antenna -R200-
   • Removing and installing. Refer to LEFT AND RIGHT ACCESS/START AUTHORIZATION ANTENNA -R200- / -R201-, REMOVING AND INSTALLING .
6. Bolt
   • 1.5 Nm
   • Quantity: 2
7. Rear Driver Side Exterior Door Handle
   • With the Left Rear Exterior Door Handle Touch Sensor -G417-
   • Overview. Refer to OVERVIEW - EXTERIOR DOOR HANDLE FOR KEYLESS ACCESS AUTHORIZATION SYSTEM .
8. Rear Passenger Side Exterior Door Handle
   • With the Right Rear Exterior Door Handle Touch Sensor -G418-
   • Overview. Refer to OVERVIEW - EXTERIOR DOOR HANDLE FOR KEYLESS ACCESS AUTHORIZATION SYSTEM .
9. Rear Passenger Side Exterior Door Handle
   • With the Right Rear Exterior Door Handle Touch Sensor -G418-
   • Overview. Refer to OVERVIEW - EXTERIOR DOOR HANDLE FOR KEYLESS ACCESS AUTHORIZATION SYSTEM .
10. Bolt
    • Not Installed
    • Quantity: 2
