Speaker Mount, Removing And Installing: Removing

-- Remove the speaker trim. Refer to SPEAKER TRIM, REMOVING AND INSTALLING .

-- Carefully pry out the speaker mount -1- using the :80-200  in direction of -arrows- .

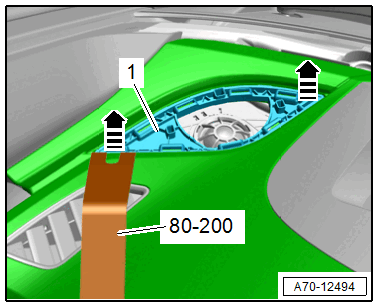

Fig 1: Speaker Mount

-- To do so, push the :3409  under the mount if necessary and carefully release the retaining pins.
