Overview - Hood

Overview - Insulation and Impact Guard on Hood. Refer to OVERVIEW - INSULATION AND IMPACT GUARD ON HOOD .

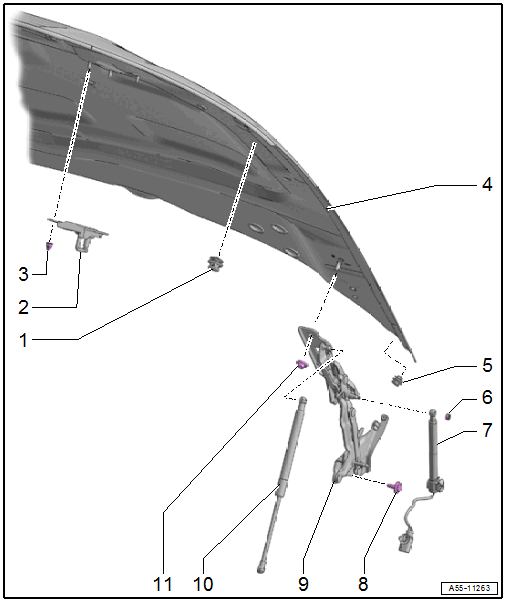

Fig 1: Exploded View Of Hood

Courtesy of AUDI OF AMERICA, LLC

Adjusting Buffer
- Adjusting. Refer to HEIGHT, ADJUSTING USING ADJUSTING BUFFER .
Striker
- There are different versions.
- Removing and Installing. Refer to STRIKER, REMOVING AND INSTALLING .
- Adjusting. Refer to SIDE AND HEIGHT ADJUSTMENT AT STRIKER .
Nut
- 9 Nm
- Quantity: 3
Hood
- Removing and Installing. Refer to HOOD, REMOVING AND INSTALLING .
- Removed pedestrian protection: reset the hinge. Refer to HINGE, RESETTING
- Adjusting. Refer to HOOD, ADJUSTING .
Adjusting Buffer
- Adjusting. Refer to HEIGHT, ADJUSTING USING ADJUSTING BUFFER .
Clip
Pedestrian Protection Trigger
- Market-specific version
- Removing and Installing. Refer to OVERVIEW - PEDESTRIAN PROTECTION .
Bolt
- 21 Nm
- Quantity: 2
Hinge
- Removing and Installing. Refer to HINGES, REMOVING AND INSTALLING .
Gas-Filled Strut
- Removing and installing. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .
- Venting. Refer to GAS-FILLED STRUT, VENTING .
Nut
- 21 Nm
- Quantity: 2
