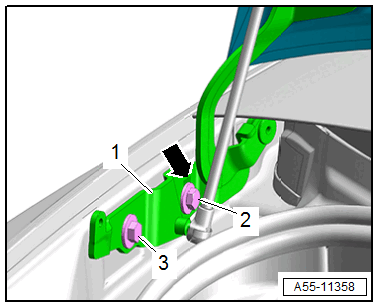

Height Adjustment at Hinge, A5 Cabriolet:

Courtesy of AUDI OF AMERICA, LLC

-- Loosen bolts -2 and 3-.

-- Adjust the height of the rear lid at the hinge -1-.

• Use the markings on the mounting bracket -arrow- to adjust the height.

-- Tighten the bolts.

Tightening Specifications

• Refer to OVERVIEW - REAR LID, A5 CABRIOLET
