Roof Frame Cover, Removing And Installing, A4 AVANT: Removing

-- Open the rear lid.

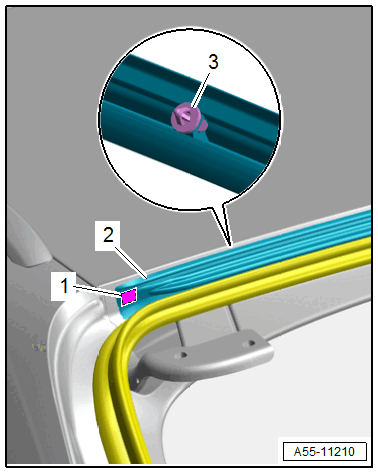

-- Carefully warm the roof frame cover -2- using the :VAS1978/14A  .

GWWA55-11210Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bonding -1- and detach the roof frame cover from the body by releasing the retainers -3-.

-- Remove the roof frame cover.
