Adjustment Dimensions

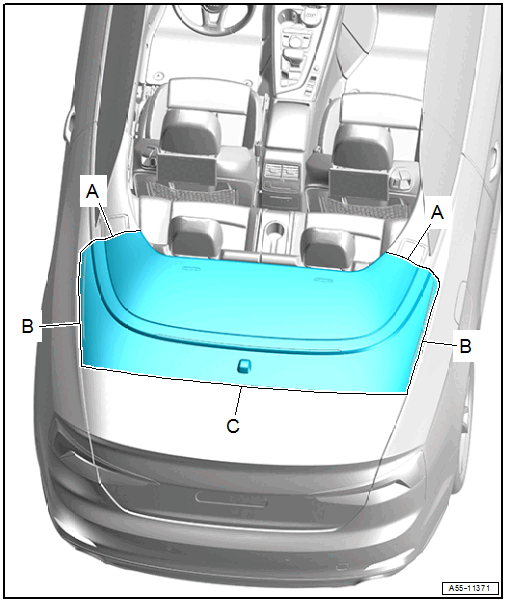

Fig 1: Adjustment Dimensions
GWWA55-11371Courtesy of AUDI OF AMERICA, LLC
  1. A - Convertible Top Compartment Cover to Side Trim Panel
    • Gap dimension = 3.5 mm
  2. B - Convertible top compartment cover to side panel
    • Gap dimension = 3.5 mm
  3. C - Convertible Top Compartment Cover to Engine Compartment Lid
    • Gap dimension = 4.0 mm
