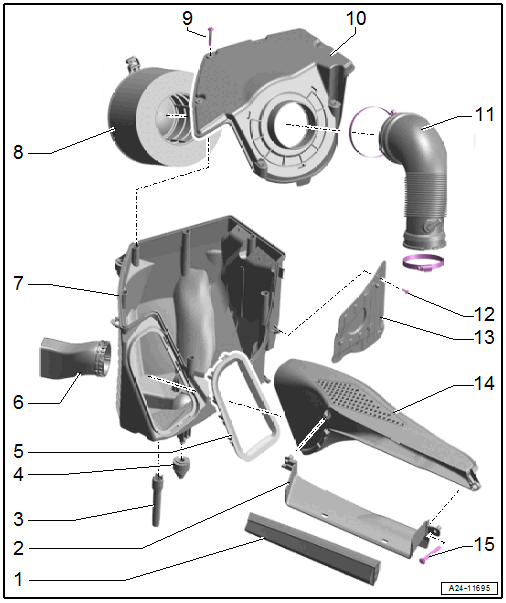

Overview - Air Filter Housing, AUDI A4/A5
WARNING: This page is about a different variant/trim than selected.
- Snow Screen
- Market-Specific Version
- Air Duct
- On the lock carrier
- Clean off any salt and dirt
- Sealing Piece
- Water Drain
- Clean
- Mount
- For the air filter housing
- Not Installed
- Air Filter Lower Section
- Clean off any salt and dirt
- Removing and Installing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .
- Air Filter Element
- Use an original air filter element. Refer to the Parts Information.
- Replacement intervals. Refer to the MAINTENANCE SCHEDULES (USA AND CANADA)
- Removing and installing
- A4, A5: Refer to AIR FILTER ELEMENT, REPLACING AND CLEANING HOUSING
- Bolt
- 3.5 Nm
- Thread cutting
- Position the bolt by hand and tighten it until it finds the old threads. Then tighten the bolt to the specification.
- Air Filter Upper Section
- Clean off any salt and dirt
- Removing and installing
- A4, A5: Refer to AIR FILTER ELEMENT, REPLACING AND CLEANING HOUSING
- Air Duct Pipe
- Pay attention to the marks for installing
- Screw-type clamps tightening specification. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
- Bolt
- 1.5 Nm
- Thread cutting
- Position the bolt by hand and tighten it until it finds the old threads. Then tighten the bolt to the specification.
- Heat Shield
- Air Duct
- On the lock carrier
- Clean off any salt and dirt
- Bolt
- 2.5 Nm
- Thread cutting
- Position the bolt by hand and tighten it until it finds the old threads. Then tighten the bolt to the specification.
