Catalytic Converter, Removing And Installing, Vehicle Without Particulate Filter: Removing

WARNING: This page is about a different variant/trim than selected.

Audi A4/A5/A6/A7:

Fig 1: Coolant Expansion Tank

GWWA19-12304

Courtesy of AUDI OF AMERICA, LLC

-- Reduce the residual pressure in the cooling system, briefly open the coolant expansion tank cap -1- by releasing the retainer in direction of -arrow-.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

Audi A4/A5:

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the Cam Adjustment Actuator 6 -F371-, Cam Adjustment Actuator 7 -F372-, Cam Adjustment Actuator 8 -F373-. Refer to CAM ADJUSTMENT ACTUATOR, REMOVING AND INSTALLING .

-- Remove the nuts -1- from the front muffler accessible from the top.

Fig 2: Threaded Connection - Front Muffler, Vehicle without Particulate Filter

GWWA26-11665

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -2- and bolt -3- for the front muffler.

-- Remove the front muffler bolts -arrows-. (Shown on the right.)

Fig 3: Identifying Bolts

GWWA26-11144

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows- and the bolt -2-.

Fig 4: Heat Shield For Vehicles With Particulate Filter

GWWA15-12175

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wires and remove the heat shield -1- (example illustration).

-- Remove the bolt -1-.

GWWA26-12306

Courtesy of AUDI OF AMERICA, LLC

-- Only loosen the bolts -2- and pivot the bracket -3- to the side.

-- Disconnect the coolant hose -2- with :3094 .

GWWA26-12307

Courtesy of AUDI OF AMERICA, LLC

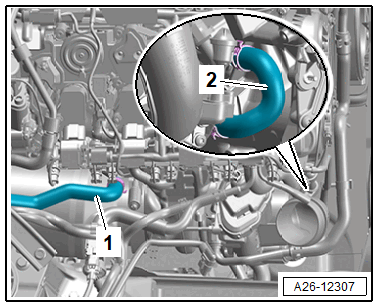

-- Loosen the hose clamp -1- and remove the coolant hose.

Audi A6/A7/Q5:

-- Remove the front muffler. Refer to FRONT MUFFLER, REMOVING AND INSTALLING, VEHICLE WITHOUT PARTICULATE FILTER .

Audi A6/A7

GWWA10-12323

Courtesy of AUDI OF AMERICA, LLC

-- Unlock the catch in direction of -arrow A- and release in direction of -arrow B-, and remove the vacuum hose -1-.

-- Lift up the clamps -1 and 2-, remove the coolant hoses and move to the side.

GWWA19-12885

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows- and the bolt -2-.

Fig 5: Heat Shield For Vehicles With Particulate Filter

GWWA15-12175

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wires and remove the heat shield -1- (example illustration).

Audi Q5:

GWWA10-12156

Courtesy of AUDI OF AMERICA, LLC

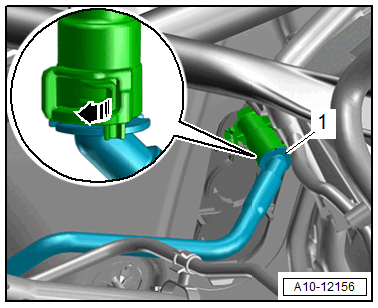

-- Release the retainer -arrow- and remove the vacuum hose -1-.

Continuation for All Vehicles:

GWWA24-11997

Courtesy of AUDI OF AMERICA, LLC

-- Remove the connector -2- for the Oxygen Sensor 1 After Catalytic Converter -GX7- -1- from the bracket and disconnect it.

-- Remove and disconnect the connector -2- for the Oxygen Sensor 1 Before Catalytic Converter -GX10- -1- from the bracket.

GWWA24-12166

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the screw-type clamp -arrow- and remove upward to the front.

GWWA26-12303

Courtesy of AUDI OF AMERICA, LLC
