Camshaft, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

All except Audi Q7/Q8:

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

Continuation for All Vehicles:

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the noise insulation (front). Refer to OVERVIEW - NOISE INSULATION .

Vehicle with High-Voltage System:

Fig 1: Identifying Bolts
GWWA26-11948Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -arrow- from the particulate filter bracket.

Audi A6/A7 with High-Voltage System:

GWWA10-12685Courtesy of AUDI OF AMERICA, LLC
CAUTION:

There is a risk of fatal injury due to high voltage.

Electrocution by direct contact or electric arc can cause severe bodily injury or fatal injury.

- Have an Audi high-voltage technician (HVT) or an Audi high-voltage expert (HVE) de-energize the high-voltage system.

-- De-energize the high-voltage system. Refer to HIGH-VOLTAGE SYSTEM, DE-ENERGIZING .

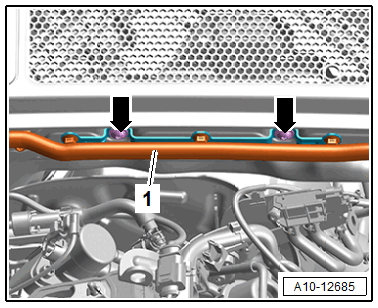

-- Remove the bolts -arrows-, free up the high-voltage cable -1- and slightly press to the front.

Continuation for all Vehicles with High-Voltage System:

Fig 2: Identifying Bolts
GWWA26-11973Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -arrow- from the catalytic converter bracket.

-- Loosen the screw-type clamp -arrow- and push the catalytic converter with particulate filter slightly toward the rear.

GWWA26-12303Courtesy of AUDI OF AMERICA, LLC

Vehicles with Secondary Air System:

-- Remove the resonator for the secondary air system. Refer to SECONDARY AIR SYSTEM RESONATOR, REMOVING AND INSTALLING .

Audi A8/Q7/Q8 with Particulate Filter:

-- Remove the plenum chamber bulkhead. Refer to PLENUM CHAMBER BULKHEAD, REMOVING AND INSTALLING .

Audi Q7/Q8 with Particulate Filter:

GWWA26-12403Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2- for the Dual Exhaust Temperature Sensor 1 -GX41-.

-- Remove the connector from the bracket and then free up the wires.

-- Remove the union bolt -1-, free up the pressure pipe on the clip -arrow- and move to the side.

GWWA26-12404Courtesy of AUDI OF AMERICA, LLC

Continuation for All Vehicles:

Fig 3: Heat Shield For Vehicles With Particulate Filter
GWWA15-12175Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows- and the bolt -2-.

-- Free up the wires and remove the heat shield -1- (example illustration).

-- Remove the bolts -2- and move the bracket to the side.

GWWA15-12424Courtesy of AUDI OF AMERICA, LLC

-- Remove the upper timing chain cover. Refer to UPPER TIMING CHAIN COVER, REMOVING AND INSTALLING .

-- Disconnect the connector -2- for the Oxygen Sensor 1 After Catalytic Converter -GX7- -1- and free up the wires.

Fig 4: Identifying Oxygen Sensor & Bracket
GWWA24-11997Courtesy of AUDI OF AMERICA, LLC

Audi Q7/Q8:

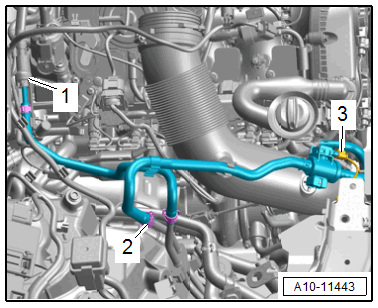

Fig 5: Fuel Tank Pressure Sensor 2 -G850- Component Location
GWWA10-11443Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamp -2- and disconnect the hose for the EVAP system.

-- If installed, disconnect the connector -3- for the Fuel Tank Pressure Sensor 2 -G850-.

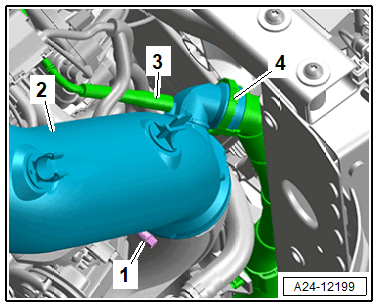

-- Remove the vacuum hose -3-.

GWWA24-12199Courtesy of AUDI OF AMERICA, LLC

-- Press the release buttons on both sides and remove the secondary air injection hose -4-.

-- Loosen the hose clamp -1- and remove the air duct pipe -2-.

Continuation for All Vehicles:

GWWA21-11468Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors and free up the wires.

1 -

For the Turbocharger Recirculation Valve -N249-

3 -

for Charge Air Pressure Control Module -GX34-

-- Press the release buttons on both sides and remove the crankcase ventilation hose -4-.

-- Disconnect the connectors and free up the wires.

GWWA15-12425Courtesy of AUDI OF AMERICA, LLC
  1. For the Camshaft Position Sensor 3 -G300-
  2. Tank Ventilation Pressure Sensor 1 -G950- (for version)
  3. For the Oxygen Sensor 1 Before Catalytic Converter -GX10- (remove from the bracket to do so)
  4. For the EVAP Canister Purge Regulator Valve 1 -N80-

-- Remove the ignition coils. Refer to IGNITION COIL, REMOVING AND INSTALLING .

-- Remove the oil separator. Refer to OIL SEPARATOR, REMOVING AND INSTALLING .

-- Remove the high pressure pump. Refer to HIGH PRESSURE PUMP, REMOVING AND INSTALLING .

-- Remove the vacuum pump. Refer to VACUUM PUMP, REMOVING AND INSTALLING .

-- Open the heat shield boot.

GWWA15-12426Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamp -arrow- and remove the coolant hose.

-- Disconnect the connector -2- from the cam adjustment actuator.

GWWA15-11794Courtesy of AUDI OF AMERICA, LLC

-- Free up the vacuum hose -1- and the wires.

GWWA15-12427Courtesy of AUDI OF AMERICA, LLC

-- Release the catches in direction of -arrows-, remove the wiring duct -2- with the wiring harness and move to the side.

All except Audi Q7/Q8:

GWWA10-12337Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamp -2- and disconnect the hose for the EVAP system.

Continuation for All Vehicles:

GWWA15-11793Courtesy of AUDI OF AMERICA, LLC

-- Lift the clip -3-, disconnect the coolant line -2- and free up from the cylinder head and push it toward the side.

-- Remove the vacuum hose -4-, disconnect the vacuum line -1- for the Intake Manifold Runner Control Valve -N316- and free it up at the cylinder head.

-- Remove the camshaft timing chain. Refer to CAMSHAFT TIMING CHAIN, REMOVING AND INSTALLING .

-- Apply the oil pump drive chain.

-- Install the Assembly Tool - Turning Over Tool: T10531/3  . In the "TDC point" the flat area -1- points upward. Install the Assembly Tool - Knurled Nut: T10531/4  . Turn the crankshaft with a 32 mm open end wrench 90° counter-clockwise out of "TDC".

Fig 6: Identifying Assembly Tool - Turning Over Tool T10531/3
GWWN15-10976Courtesy of AUDI OF AMERICA, LLC

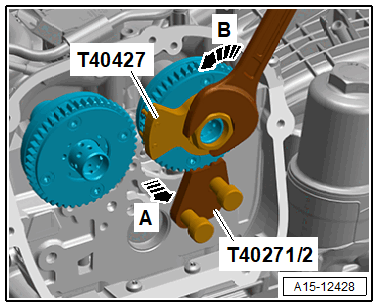

-- Reduce the intake camshaft pretension using the Assembly Tool: T40427  in the direction of -arrow B-, pull the Camshaft Lock: T40271/2  out of the chain sprocket splines in direction of -arrow A-, and bring the intake camshaft into its resting position.

GWWA15-12428Courtesy of AUDI OF AMERICA, LLC

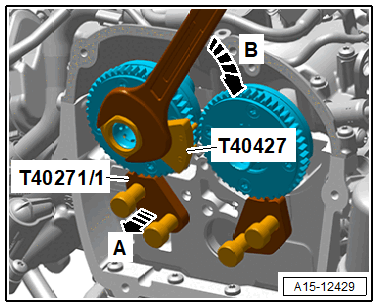

-- Reduce the exhaust camshaft pretension using the Assembly Tool: T40427  in the direction of -arrow B-, pull the Camshaft Lock: T40271/1  out of the chain sprocket splines in direction of -arrow A-, and bring the intake camshaft into its resting position.

GWWA15-12429Courtesy of AUDI OF AMERICA, LLC

-- Remove the cylinder head cover bolts in -1 to 6- sequence.

Fig 7: Cylinder Head Cover Bolt Loosening Sequence
GWWA15-11493Courtesy of AUDI OF AMERICA, LLC

-- Carefully loosen the cylinder head cover -2- from the bonding with a screwdriver -1- and remove it together with the camshafts.

GWWA15-12197Courtesy of AUDI OF AMERICA, LLC

-- Remove the camshaft and cover the open engine components.

-- If necessary for continuing work: mark the roller rocker lever and hydraulic lifter for reinstallation, remove them and place on a clean surface.
