Connection Diagram - Coolant Hoses, AUDI A6/A7 Without Parking/Auxiliary Heater
WARNING: This page is about a different variant/trim than selected.

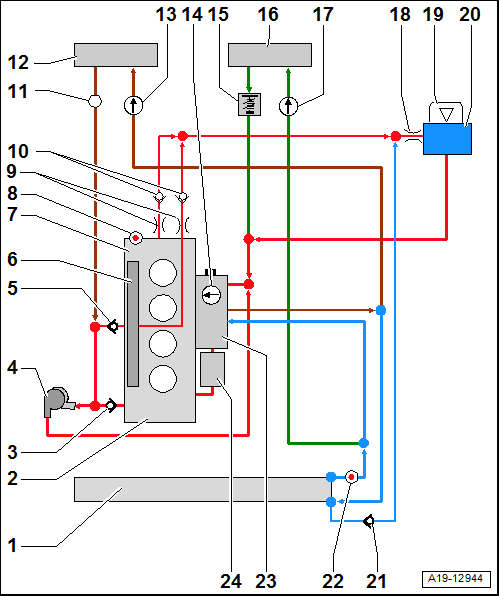

- Blue = large coolant circuit.
- Red = small coolant circuit.
- Brown = heating circuit.
- Green = coolant circuit for the transmission.
- Arrows = coolant flow direction.
Courtesy of AUDI OF AMERICA, LLC- Radiator
- Cylinder Block
- Check Valve
- Turbocharger
- Check Valve
- Exhaust Manifold
- Cylinder Head
- Engine Coolant Temperature Sensor -G62-
- Not Installed
- Check Valves
- Bleed Hole
- Heater Core for the Heater
- Coolant Recirculation Pump -V50-
- Coolant Pump
- Coolant Thermostat
- For transmission coolant circuit
- Equipped on some models
- ATF Cooler
- Equipped on some models
- After-Run Coolant Pump -V51-
- Equipped on some models
- Restrictor
- Cap
- Pressure Relief Valve, Checking. Refer to the appropriate Service Information .
- Coolant Expansion Tank
- Check Valve
- Engine Coolant Temperature Sensor on Radiator Outlet -G83-
- Engine Temperature Control Actuator -N493-
- Engine Oil Cooler
