Interior Rearview Mirror, Removing And Installing: Notes
Special tools and workshop equipment required
- Medium-hard clip release lever from the Scraper Set :VAS6845
Removing
WARNING:
Health risk due to electrolyte.
- Follow the safety precautions for the automatic dimming interior rearview mirror. Refer to SAFETY PRECAUTIONS, AUTOMATIC DIMMING INTERIOR REARVIEW MIRROR .
-- Tilt the interior rearview mirror downward until it stops, approximately 25°.

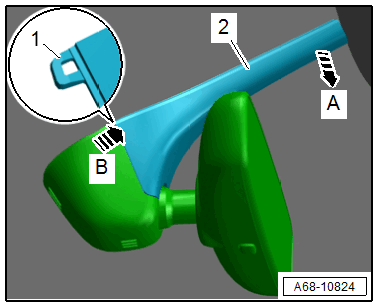

-- Pull the rear cover -2- downward in direction of -arrow A- and at the same time release the catches -1- by pressing firmly on the cover in direction of -arrow B-.
-- Disengage the cover from the mirror base and remove.
