Front Bass Speaker Trim, Removing

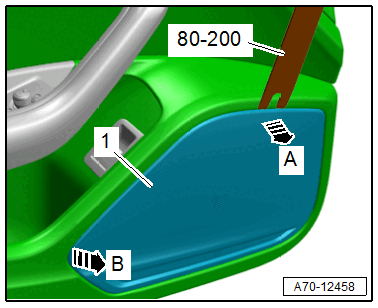

Fig 1: Front Bass Speaker Trim
GWWA70-12458

-- Carefully pry out the speaker trim -1- along the door trim panel seam using the :80-200  in direction of -arrow A- .

-- Disengage the speaker trim at the rear from the door trim panel in direction of -arrow B- and remove.
