Glass Panel, Adjusting, A5: Notes

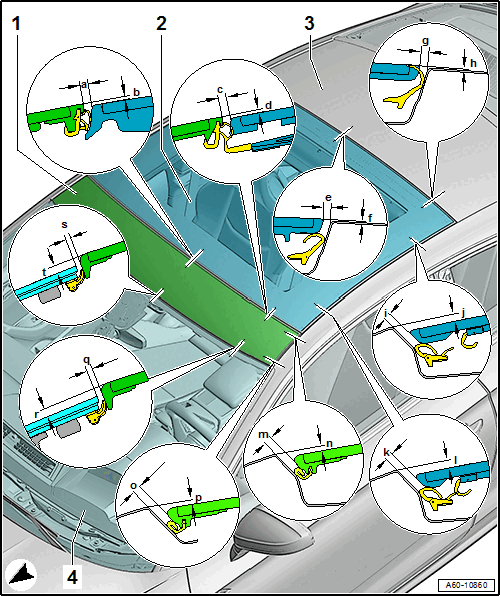

Adjustment Dimensions
- 1 - Glass Trim
- A5 Coupe:
Dimension -m- = 3.2 mm
Dimension -n- = 2.1 mm
Dimension -o- = 3.1 mm
Dimension -p- = 1.9 mm
Dimension -q- = 2 mm
Dimension -r- = 3.4 mm
Dimension -s- = 2 mm
Dimension -t- = 3.5 mm
- A5 Sportback:
Dimension -m- = 3.2 mm
Dimension -n- = 1.9 mm
Dimension -o- = 3.2 mm
Dimension -p- = 1.7 mm
Dimension -q- = 2 mm
Dimension -r- = 3 mm
Dimension -s- = 2 mm
Dimension -t- = 3.1 mm
2 - Glass Panel
- A5 Coupe:
Dimension -a- = 3 mm
Dimension -b- = 1.2 mm
Dimension -c- = 3 mm
Dimension -d- = 1 mm
Dimension -e- = 3.2 mm
Dimension -f- = 0.6 mm
Dimension -g- = 3.2 mm
Dimension -h- = 0.6 mm
Dimension -i- = 3.1 mm
Dimension -j- = 2.7 mm
Dimension -k- = 3.1 mm
Dimension -l- = 3.4 mm
- A5 Sportback:
Dimension -a- = 3 mm
Dimension -b- = 1.2 mm
Dimension -c- = 3 mm
Dimension -d- = 1.2 mm
Dimension -e- = 3.1 mm
Dimension -f- = 0.6 mm
Dimension -g- = 3.1 mm
Dimension -h- = 0.5 mm
Dimension -i- = 3.1 mm
Dimension -j- = 2.9
Dimension -k- = 3.1
Dimension -l- = 3.1
- 3 - Body
- 4 - Windshield
Height Adjustment
- To achieve the best possible exterior optical characteristics, make sure that the adjustment on left and right sides is performed as evenly (symmetrically) as possible.
-- Check the glass panel adjustment using a depth gauge, for example. Refer to GLASS PANEL, ADJUSTING, A5 .
-- Close the sliding sunroof.

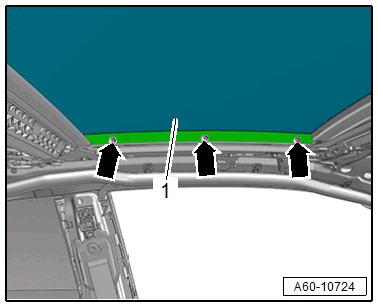

-- To adjust the glass panel -1-, reach through the openings in the side rubber trim on the glass panel to loosen the screws -arrows-.
-- Adjust the glass panel -1- in the front area and tighten the front bolts.
-- Adjust the glass panel -1- in the rear area and tighten the rear bolts.
-- Then tighten the bolts in the center.
-- Perform an adaptation. Refer to Sunroof Motor -V1-, PROGRAMMING .
