Wind Deflector, Removing And Installing, A4 AVANT: Installing

Install in reverse order of removal and note the following:

-- First mount the wind deflector frame on the bearing.

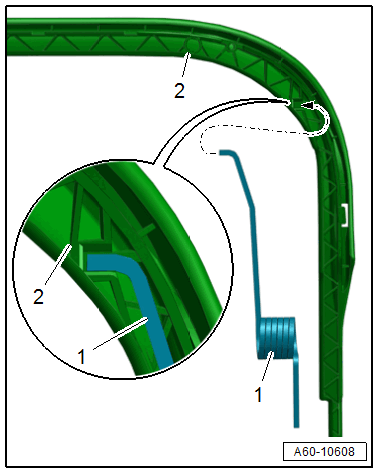

-- Carefully insert the spring -1- into the cut-out on the frame -2- -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Perform an adaptation. Refer to Sunroof Motor -V1-, PROGRAMMING .
