Center Vent, Removing And Installing: Removing

-- Remove the instrument panel cover on the driver side. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

-- Remove the light switch trim. Refer to LIGHT SWITCH TRIM, REMOVING AND INSTALLING .

-- Remove the A/C display control head trim. Refer to DISPLAY CONTROL HEAD TRIM, REMOVING AND INSTALLING .

-- Move the steering wheel as far to the rear and down as possible. Use the full steering column adjustment range for this.

-- Using the :3409  , unclip the steering column trim panel gap cover -1- from the instrument panel vent in direction of -arrows- .

-- Remove the MMI screen cover. Refer to MMI SCREEN COVER, REMOVING AND INSTALLING .

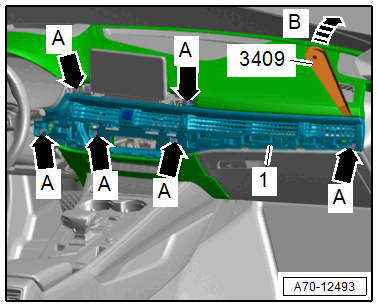

-- Remove the screws -A arrows- .

-- Unclip the instrument panel vent -1- using the :3409  in direction of -arrow B- .

-- Disengage the remaining retainers, carefully remove the instrument panel vent and disconnect the connectors.
