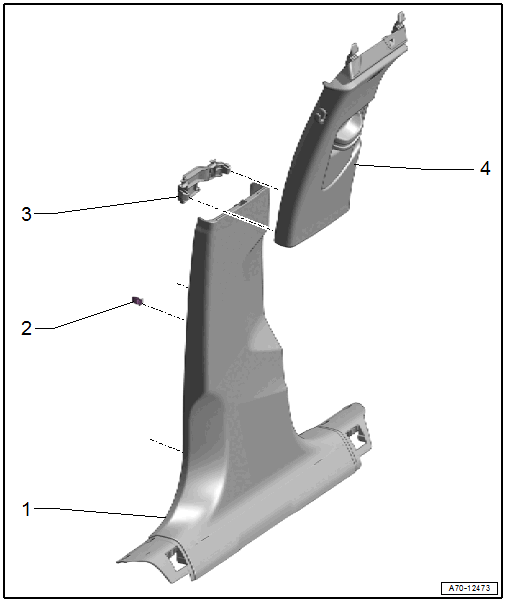

Overview - B-Pillar Trim Panel
- B-Pillar Lower Trim Panel
- Removing and installing. Refer to B-PILLAR LOWER TRIM PANEL, REMOVING AND INSTALLING .
- Clipped in the B-pillar
- Press on until it engages audibly
- Stretch the door seal lip over.
- Clip
- Replace damaged or deformed clips
- Remove any remaining clips in the body mounting points using the Omega Clip Tool:T40280 . To install, insert into the trim panel.
- Insert in the trim panel
- Quantity: 3
- Bracket
- Removing and installing. Refer to B-PILLAR UPPER TRIM PANEL, REMOVING AND INSTALLING .
- Clipped in the B-pillar
- Press on it until it locks
- B-Pillar Upper Trim Panel
- Removing and installing. Refer to B-PILLAR UPPER TRIM PANEL, REMOVING AND INSTALLING .
- Insert in the upper part of the mounting points on the roof and clip into the bracket
- Press on until it engages audibly
- Stretch the door seal lip over.
