Overview - Luggage Compartment Floor, G-Tron

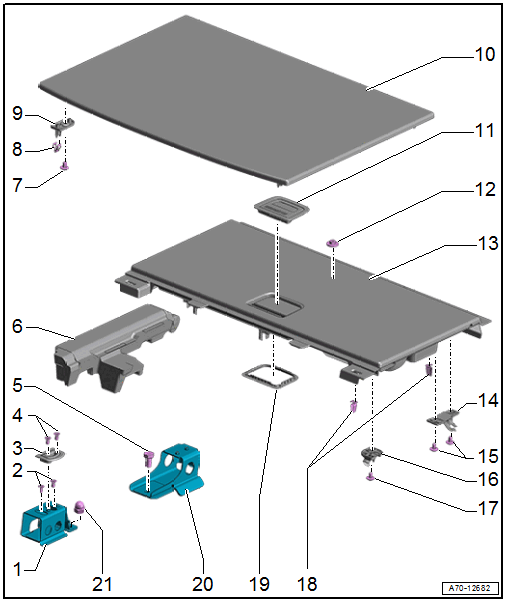

Fig 1: Exploded View Of Luggage Compartment Floor, G-Tron

Tie Down Bracket
- Removing and installing. Refer to TIE DOWN BRACKET, REMOVING AND INSTALLING .
Bolts
- 9 Nm
Tie Down
- Removing and installing. Refer to TIE DOWN, REMOVING AND INSTALLING .
- Quantity: 2
Bolts
- 9 Nm
Bolt
- 55 Nm
Cover Strip
- Removing and installing. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, AVANT .
Bolt
- 1 Nm
Clip
- Insert in the bracket
- Replace damaged or deformed clips
Bracket
- For the luggage compartment floor
- Quantity: 4
Rear Luggage Compartment Floor
- Removing and installing. Refer to LUGGAGE COMPARTMENT FLOOR, REMOVING AND INSTALLING, G-TRON .
Handle
- For the luggage compartment floor
- Removing and installing. Refer to REAR LUGGAGE COMPARTMENT FLOOR HANDLE, REMOVING AND INSTALLING .
Nut
- 2 Nm
- For retaining strap
Front Luggage Compartment Floor
- Removing and installing. Refer to LUGGAGE COMPARTMENT FLOOR, REMOVING AND INSTALLING, G-TRON .
Support
- For the luggage compartment floor cover
- Quantity: 2
Bolts
- 1 Nm
Catch
- For the luggage compartment floor cover
- Quantity: 2
Bolt
- 1 Nm
Clip
- Replace damaged or deformed clips
- Insert in the luggage compartment floor
- Remove any remaining clips in the body mounting points using the Omega Clip Tool:T40280 . To install, insert into the trim panel.
- Quantity: 5
Frame
- For the luggage compartment floor panel handle
- Can be pressed down in one position on luggage compartment floor panel handle
- Press on until it engages audibly
Tie Down Bracket
- Removing and installing. Refer to TIE DOWN BRACKET, REMOVING AND INSTALLING .
Nut
- 1.5 Nm
