Overview - Headliner, AVANT

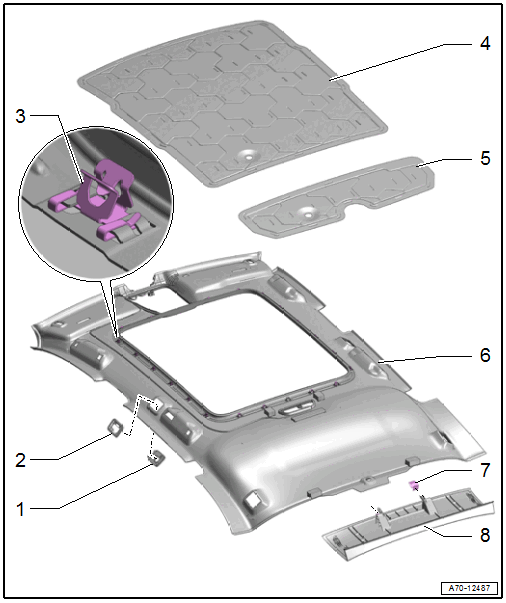

Fig 1: Headliner, Avant
GWWA70-12487
  1. Trim
    • For the screen separator mounting eye
    • Clipped to the bracket in the headliner
    • Quantity: 4
  2. Bracket
    • For the mounting eye trim
    • Clipped into the headliner with the trim
    • Quantity: 4
  3. Clip
    • Replace damaged or deformed clips
    • For vehicles with sliding sunroof
    • Quantity 21
    • Insert in the headliner
  4. Front Roof Reinforcement
  5. Rear Roof Reinforcement
  6. Headliner with Deformation Elements
  7. Clip
    • Replace damaged or deformed clips
    • Insert in the roof end strip
    • Remove the clips that are still in the mounting points on the body using the Omega Clip Tool:T40280  .
    • Quantity: 2
  8. Roof End Strip
    • Insert in the D-pillar trim panels and press on it until it audibly engages.
    • Stretch the lip of the rear lid seal over
    • Removing and installing. Refer to ROOF END STRIP, REMOVING AND INSTALLING .
