Sun Shade, Removing And Installing, Side Window: Removing

-- Remove the rear door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .

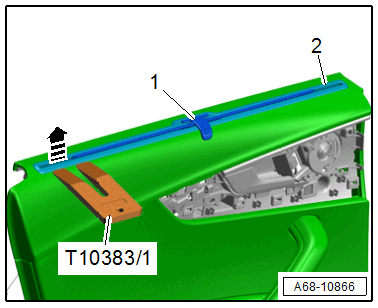

-- Carefully unclip the sun shade cover -2- from the door trim panel in direction of -arrow- using the :T10383/1  .

Courtesy of AUDI OF AMERICA, LLC

-- Pull the sun shade -1- slightly out of the door trim panel and guide the tab out through the sun shade cover.

-- Place the door trim panel on a soft surface.

Courtesy of AUDI OF AMERICA, LLC

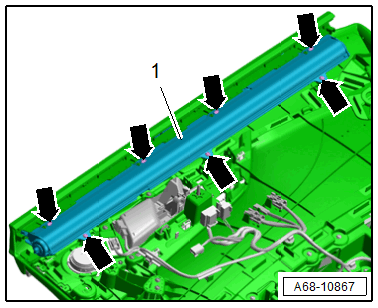

-- Remove the bolts -arrows-.

-- Guide the tab out through the door trim panel and remove the sun shade -1-.
