Center Console Rear Trim, Removing And Installing: Removing
-- Move the front seats all the way forward.

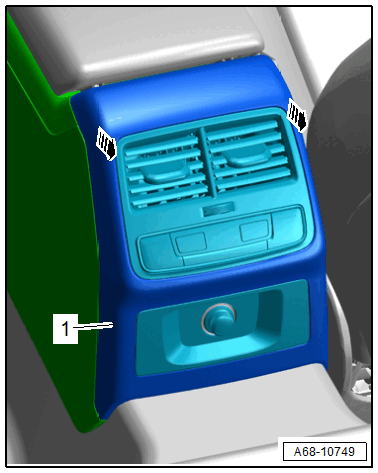

-- Unclip the trim -1- from the center console in direction of -arrows- using the :T10383/1
or by hand.
Courtesy of AUDI OF AMERICA, LLC
|
-- Remove the trim from the center console toward the rear.
-- Disconnect the connectors.
