Front Sill Panel, Removing And Installing: Removing
-- Move the front seat all the way back.
-- Remove the instrument panel side cover. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .

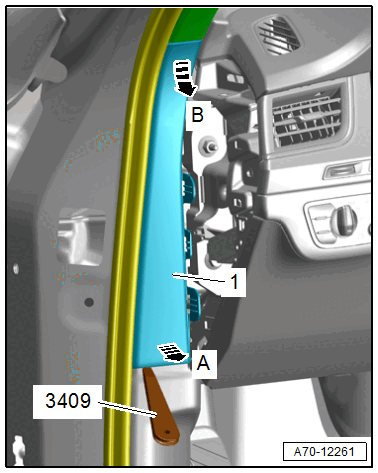

-- Unclip the A-pillar gap cover -1- using the :3409 in direction of -arrow A- and disengage at the A-pillar upper trim panel in direction of -arrow B- .
Driver Side:
-- Remove the release lever for the hood release cable. Refer to LATCH RELEASE LEVER MOUNTING BRACKET, REMOVING AND INSTALLING .

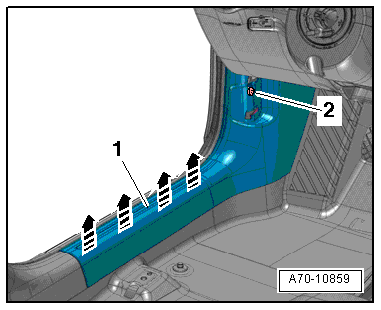

-- Remove the bolt -2- .
Continuation for Both Vehicle Sides:
-- Free up the sill panel in the area of the door seal.
-- Unclip the front sill panel -1- from the side sill starting at the back. Use the :3409 in direction of -arrows- and remove it toward the rear.
-- Remove the front sill panel.
