Roof Reinforcement, Attaching To Body, Sedan: Procedure

• Headliner removed. Refer to HEADLINER, REMOVING AND INSTALLING, SEDAN .

-- Apply adhesive beads -arrows- to the roof reinforcements as shown.

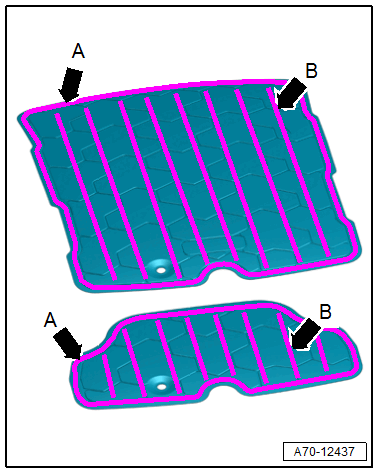

Fig 1: Roof Reinforcement, Attaching To Body, Sedan

• Thickness of the beads on the circumference -A arrows- is approximately 7 mm.
• Thickness of the support beads -B arrows- is approximately 5 mm.
• Apply the adhesive beads according to the line markings on the roof reinforcement.

Versions Equipped with a Sliding Sunroof:

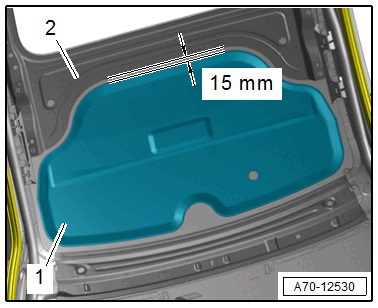

Fig 2: Roof Reinforcement, Attaching To Body, Sedan (With A Sliding Sunroof)

-- Mount the roof reinforcement -1- centered to the outer sides and at a distance of approximately 15 mm to the bow -2- on the roof.

-- Press the roof reinforcement on the roof surface.

-- Wipe off any adhesive residue.

Versions without Sliding Sunroof:

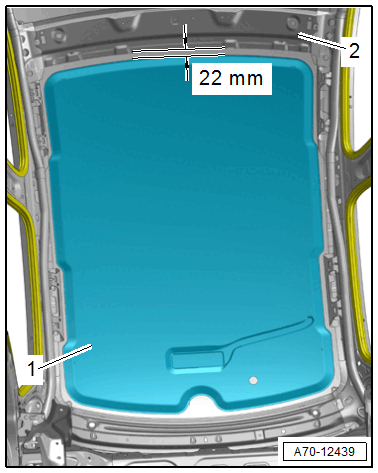

Fig 3: Roof Reinforcement, Attaching To Body, Sedan (Without Sliding Sunroof)

-- Mount the roof reinforcement -1- centered to the outer sides and at a distance of approximately 22 mm to the bow -2- on the roof.

-- Press the roof reinforcement on the roof surface.

-- Wipe off any adhesive residue.

Further installation is the reverse order of removal.
