Backrest Cover And Cushion, Removing And Installing, Standard Seat, China Version: Removing
Risk of injury due to involuntary deployment.
- Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.
-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Fasten the front seat on the :VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .
-- Remove the headrest. Refer to HEADREST, REMOVING AND INSTALLING, STANDARD SEAT, CHINA VERSION .
-- Remove the backrest cover. Refer to BACKREST COVER, REMOVING AND INSTALLING, STANDARD SEAT, CHINA VERSION .
-- Remove the tunnel-side seat side trim. Refer to SEAT SIDE TRIM ON TUNNEL SIDE, REMOVING AND INSTALLING .
-- Remove the seat side trim on the side sill side and remove the bracket. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING, STANDARD SEAT, CHINA VERSION .
-- Equipped on some models: remove the child seat anchor. Refer to FRONT CHILD SEAT ANCHOR, REMOVING AND INSTALLING .
-- Equipped on some models: disconnect the backrest heating wiring harness from the seat pan and free it up.

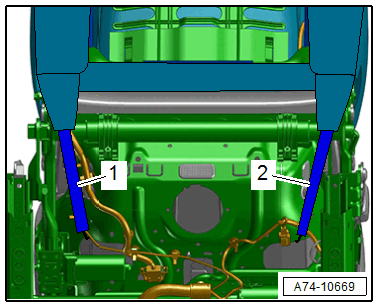

-- Disengage the elastic strap -1 and 2- from the bottom of the seat pan.

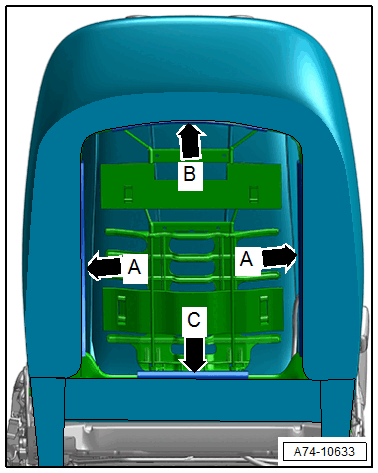

-- Disengage the molding -arrows A through C- from the back of the backrest frame.
-- Remove the front thorax airbag. Refer to FRONT THORAX AIRBAG WITH IGNITER, REMOVING AND INSTALLING, STANDARD SEAT, CHINA VERSION .
-- Equipped on some models: disconnect the backrest heating wiring harness from the seat pan and free it up.

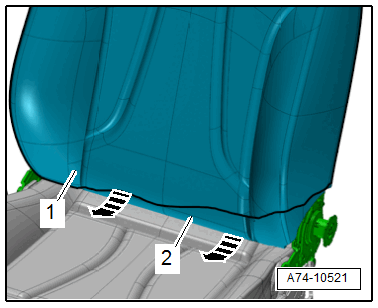

-- Disengage the cushion -1- with cover -2- at the lower section of the backrest -arrows-.
-- Remove the cushion and cover from the backrest frame, depending on the version guide the wiring harness for the backrest heating.
