37 Service Info: Noises From Wheel Input Shaft/Drive Shaft (GROUP 37, NO. 25-31)
Reference number: GROUP 37, NO. 25-31
Supersedes refnos: (2074822/1), 2074822/2, GROUP 37, NO. 24-21
37 SERVICE INFO: NOISES FROM WHEEL INPUT SHAFT/DRIVE SHAFT
TECHNICAL SERVICE BULLETIN
| AUDI: | 2010-2026 All Audi Vehicles |
| GROUP: | 37 - Automatic Transmission - Controls, Case |
SERVICE INFORMATION
37 25 31 2074822/2 January 9, 2025. Supersedes Technical Service Bulletin Group 37 number 24-21 dated July 31, 2024, for reasons listed below.
| Model(s) | Year | VIN Range | Vehicle-Specific Equipment |
|---|---|---|---|
| All Audi Vehicles | 2010 - 2026 | All | Not Applicable |
CONDITION
| Revision | Date | Purpose |
|---|---|---|
| 2 | - | Revised header (Add Model Year) |
| 1 | 07/31/2024 | Initial publication |
Customer states:
The customer complains about rattling/clacking/clicking/hissing noises from the front of the vehicle.
The noises occur when pulling away or cornering.
Workshop findings:
Case 1:
It is determined that the component causing the condition is a boot of the wheel input shaft/drive shaft which has been damaged by external influences.
Case 2:
No visible faults are detected but it is certain that the wheel input shaft/drive shaft is causing the noise.
TECHNICAL BACKGROUND 1
Please refer to TSB 2023187: 40 Squeaking noises when steering or maneuvering.

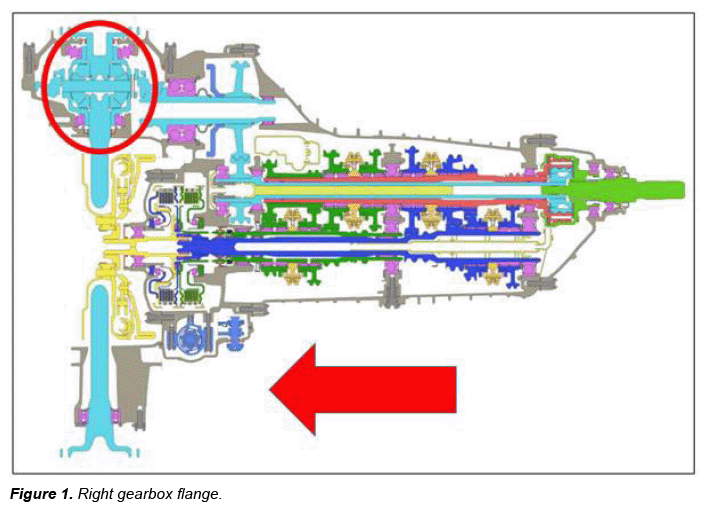

On vehicles with longitudinal gearbox, there is a certain amount of play (vertical/horizontal) on the right gearbox flange (refer to red circle in Figure 1); this is design-related and does not constitute a technical issue.
Regarding Case 1:
External influences include the following: stones, branches or damage caused by animals.
If boots are damaged by these influences, water gets into the area of the boot/constant velocity joint and damages the constant velocity joint of the wheel input shaft.
Regarding Case 2:
Before you replace the wheel input shaft/drive shaft/gearbox, localize the complaint e.g. by performing a road test. Does the noise/vibration increase or change when turning the steering wheel in different speed ranges?
If the noise continues in the different speed ranges, check whether swapping components from a similar vehicle (not from left to right ) resolves the issue.
Or:

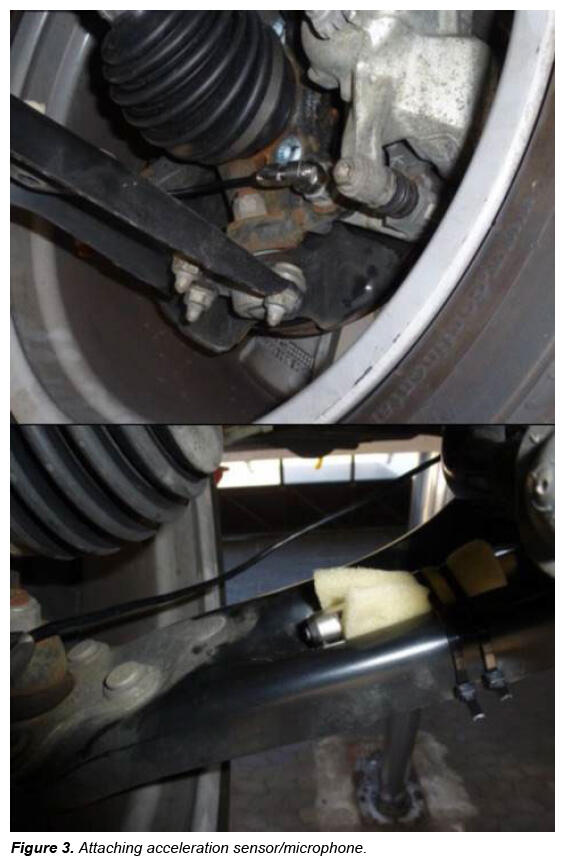

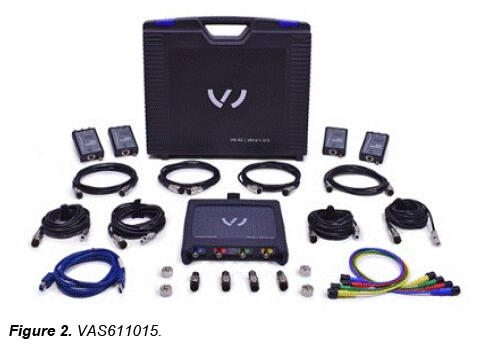

You can use noise detection equipment (e.g.: PICO tool VAS 611015/Combiscope) to ascertain which component is causing the noise and then include the measurements with the warranty claim.
When performing analysis with VAS 611015, please also observe TSB 2070568: 00 Professional noise analysis with the VAS 611 015 PICO-NVH tool.
Please refer to the films available in the Audi Knowledge Tank under:
Search > PICO tool.
PRODUCTION SOLUTION
Not applicable.
SERVICE
Not applicable.
WARRANTY
Case 1:
Billing not allowed/possible.
Case 2:
Billing in accordance with SAGA/APOS.
REQUIRED PARTS AND TOOLS
We reserve the right to charge back parts which have been replaced without good reason.
ADDITIONAL INFORMATION
Customer Information:
Regarding Case 1: This is not a fault which is covered by warranty.
All part and service references provided in this TSB (2074822) are subject to change and/or removal. Always check with your Parts Department and/or ETKA for the latest information and parts bulletins. Please check the Repair Manual for fasteners, bolts, nuts, and screws that require replacement during the repair.
