66 Exterior Black Optic Trim Is Discolored (GROUP 66, NO. 24-12)
Reference number: GROUP 66, NO. 24-12
Supersedes refnos: 2060333/1, 2060333/2, 2060333/3, 2060333/4, 2060333/5, GROUP 66, NO. 20-66, GROUP 66, NO. 20-67, GROUP 66, NO. 23-03, GROUP 66, NO. 23-95
66 EXTERIOR BLACK OPTIC TRIM IS DISCOLORED
TECHNICAL SERVICE BULLETIN
| AUDI: | 2018-2024 All Audi Vehicles |
| GROUP: | 66 - Body Accessories - Exterior |
SERVICE INFORMATION
66 24 12 2060333/5 September 18, 2024. Supersedes Technical Service Bulletin Group 66 number 23-03 dated October 24, 2023, for reasons listed below.
| Model(s) | Year | VIN Range | Vehicle-Specific Equipment |
|---|---|---|---|
| All Audi Vehicles | 2018 - 2024 | All | Not Applicable |
CONDITION
| Revision | Date | Purpose |
|---|---|---|
| 5 | - | Revised header (Remove MY 2018 e-tron) Revised Service (Photo/video documentation requirement added) Revised Required Parts and Tools (Remove table) |
| 4 | 10/25/2023 | Revised header (Add MY 2022 - 2024) |
| 3 | 01/26/2023 | Revised header (Add MY 2021) |
Customer states:
- The exterior trim on a vehicle with black optic package is discolored. It appears to take on a red or purple hue and, in some cases, may take on a grey or metallic appearance.
TECHNICAL BACKGROUND 1
The ultraviolet radiation resistance in the trim coating was found to be insufficient.
PRODUCTION SOLUTION
Improved trim coating is implemented into production.
SERVICE

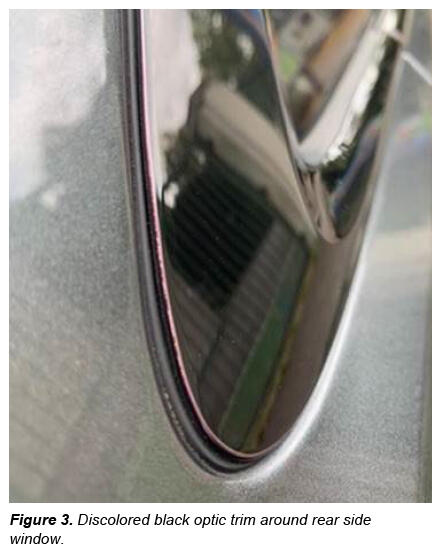

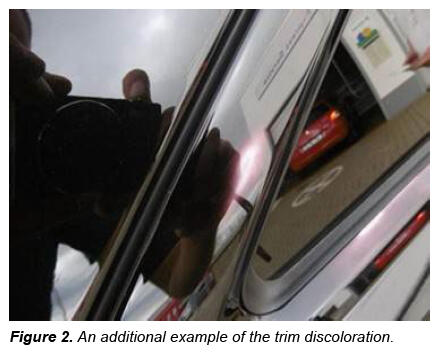

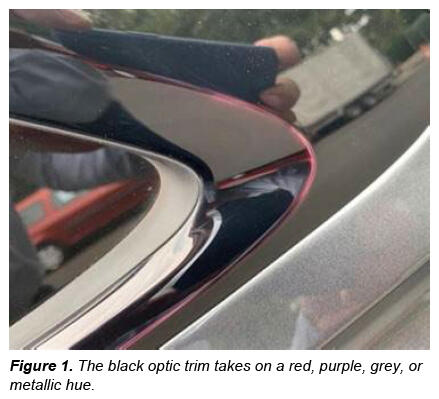

- Figures 1 - 3 depict the discoloration.
- Should the symptom described in this TSB present as described, then replace the affected trim. This TSB is not to be applied in cases where any other issue with a black optic trim piece or an issue with a non-black optic trim piece is discovered.
- Please take photos of the customers' concern and upload them into DOC-IT with the repair order. Photos should Have a date stamp and VIN reference.
Be taken in focus and with sufficient light.
WARRANTY
| Claim Type: |
|
||
| Service Number: | 6663 | ||
| Damage Code: | 0031 | ||
| Labor Operations: | Replace black optic trim piece. | Use the appropriate labor operation that corresponds with the affected trim being replaced. | See SRT with associated operations |
| GFF | No allowance | 0 TU | |
| Road test prior to the service procedure | No allowance | 0 TU | |
| Road test after the service procedure | No allowance | 0 TU | |
| Claim Comment: | As per TSB 2060333/5 | ||
All warranty claims submitted for payment must be in accordance with the Audi Warranty Policies and Procedures Manual . Claims are subject to review or audit by Audi Warranty.
ADDITIONAL INFORMATION
All parts and service references provided in this TSB (2060333 ) are subject to change and/or removal.
