01 Loose Engine Oil Filler Cap - P006800, P227900, P050700 - 2.0 LTR. TFSI (GROUP 01, NO. 23-62)
Reference number: GROUP 01, NO. 23-62
Supersedes refnos: 2070915/1
01 LOOSE ENGINE OIL FILLER CAP - P006800, P227900, P050700 - 2.0 LTR. TFSI
TECHNICAL SERVICE BULLETIN
| AUDI: | 2021-2025 A4, A4 allroad, A5, A5 Cabriolet, A5 Sportback, A6, Q5, and Q5 Sportback; 2022-2025 A3, and S3; 2023-2025 Q7 |
| GROUP: | 01 - On-Board Diagnostic |
SERVICE INFORMATION
01 23 62 2070915/1 July 19, 2023.
| Model(s) | Year | VIN Range | Vehicle-Specific Equipment |
|---|---|---|---|
| A4, A4 allroad, A5, A5 Cabriolet, A5 Sportback, A6, Q5, and Q5 Sportback | 2021-2025 | All | Not Applicable |
| A3, and S3 | 2022 - 2025 | ||
| Q7 | 2023 - 2025 |
CONDITION
Customer states:
- MIL on.
- The engine is running rough.
- There is oil on the engine near the oil filler cap.
Workshop findings:
The following DTC may be stored:
- P227900 - Intake Air System Leak.
- P006800 - MAP/MAF, Throttle Position Correlation.
- P050700 - Idle Control System RPM Higher than Expected.
TECHNICAL BACKGROUND
Possibly caused by an incorrectly installed oil filler cap.
PRODUCTION SOLUTION
Not applicable.
SERVICE

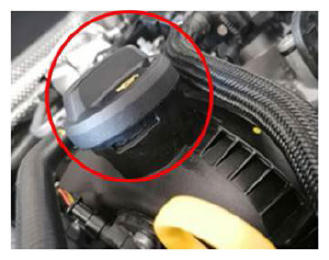

Remove and re-install the oil filler cap in the correct position. Before inserting the oil filler cap, thoroughly clean the contact surfaces of the cap and the filler neck.
If the oil filler cap is installed correctly, please work through the complaint using Guided Fault Finding.
WARRANTY
This TSB is informational only and not applicable to any Audi Warranty.
ADDITIONAL INFORMATION
All part and service references provided in this TSB (2070915 ) are subject to change and/or removal. Always check with your Parts Department and/or ETKA for the latest information and parts bulletins. Please check the Repair Manual for fasteners, bolts, nuts, and screws that require replacement during the repair.
