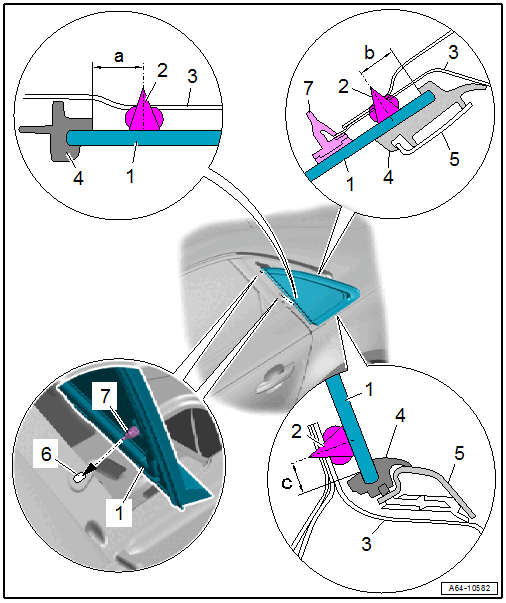

Overview - Rear Side Window, A4 Sedan
The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.
- Rear Side Window
- Removing and Installing. Refer to REAR SIDE WINDOW, REMOVING AND INSTALLING .
- After installing, push in using the locating pins -item 7-
- Adhesive Bead
- Observe minimum curing times. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Different distances to window edge:
- Dimension -a- = 40.3 mm
- Dimension -b- = 7.6 mm
- Dimension -c- = 7.5 mm
- Adhesive bead thickness. Refer to Adhesive Application: .
- Side Window Frame
- Molding
- Must not be damaged in the visible area
- Trim Molding
- Only for versions with the gloss package
- Securing Hole
- Centering Pin
- Is cut through when removing the window
