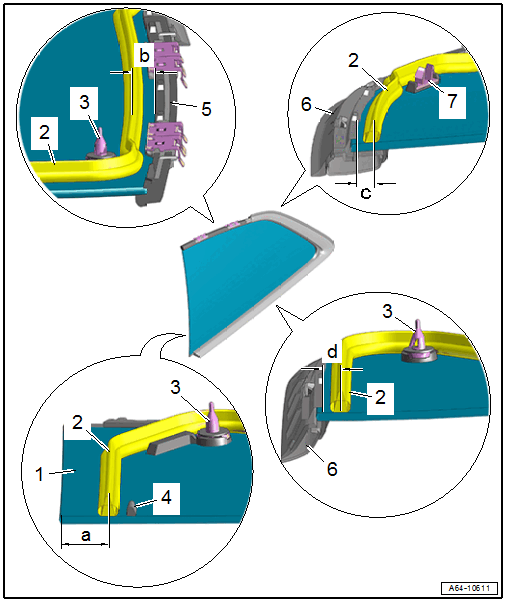

Overview - Rear Side Window, A5 Coupe
The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.
- Rear Side Window
- Removing and Installing. Refer to UNDAMAGED SIDE WINDOW, REMOVING, A5 COUPE .
- After installing, push in using the locating pins -item 3-
- Adhesive Bead
- Observe minimum curing times. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Different distances to window edge:
- Dimension -a- = 40.3 mm
- Dimension -b- = 7.6 mm
- Dimension -c- = 7.5 mm
- Dimension -d- = 7.6 mm
- Adhesive bead thickness. Refer to Adhesive Application: .
- Locating Pin
- Is cut through when removing the window
- Spacer
- Upper Molding
- On the side window frame
- Lower and Side Molding
- On the side window frame
- Catch
