Overview - Rear Door Window, A4

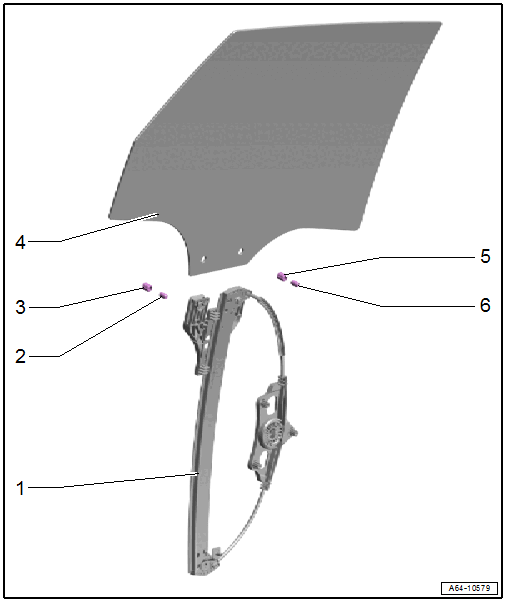

Fig 1: Rear Door Window, A4 Overview
GWWA64-10579Courtesy of AUDI OF AMERICA, LLC
  1. Window Regulator
  2. Clamping Pin
  3. Pin
    • Pins can be re-used.
  4. Door Window
  5. Pin
    • Pins can be re-used.
  6. Clamping Pin
