Height Adjustment

Special tools and workshop equipment required

• Socket 5 mm: T10570

Procedure

-- Move the door window into the "open" position.

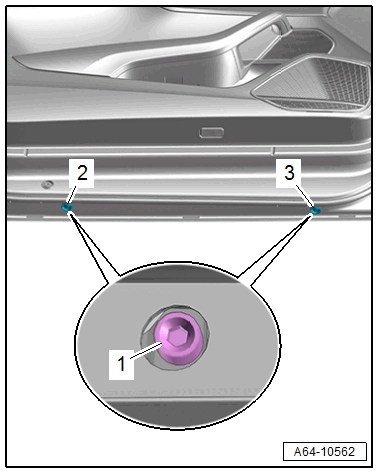

-- Remove the plugs -2 and 3-.

Courtesy of AUDI OF AMERICA, LLC

-- Turn the adjusting bolt -1- using the : T10570  .

TIP:

A5 Sportback: the position of the plug -3- is different from the image and is located above the outer door seal.

• One turn = 1 mm adjustment.
