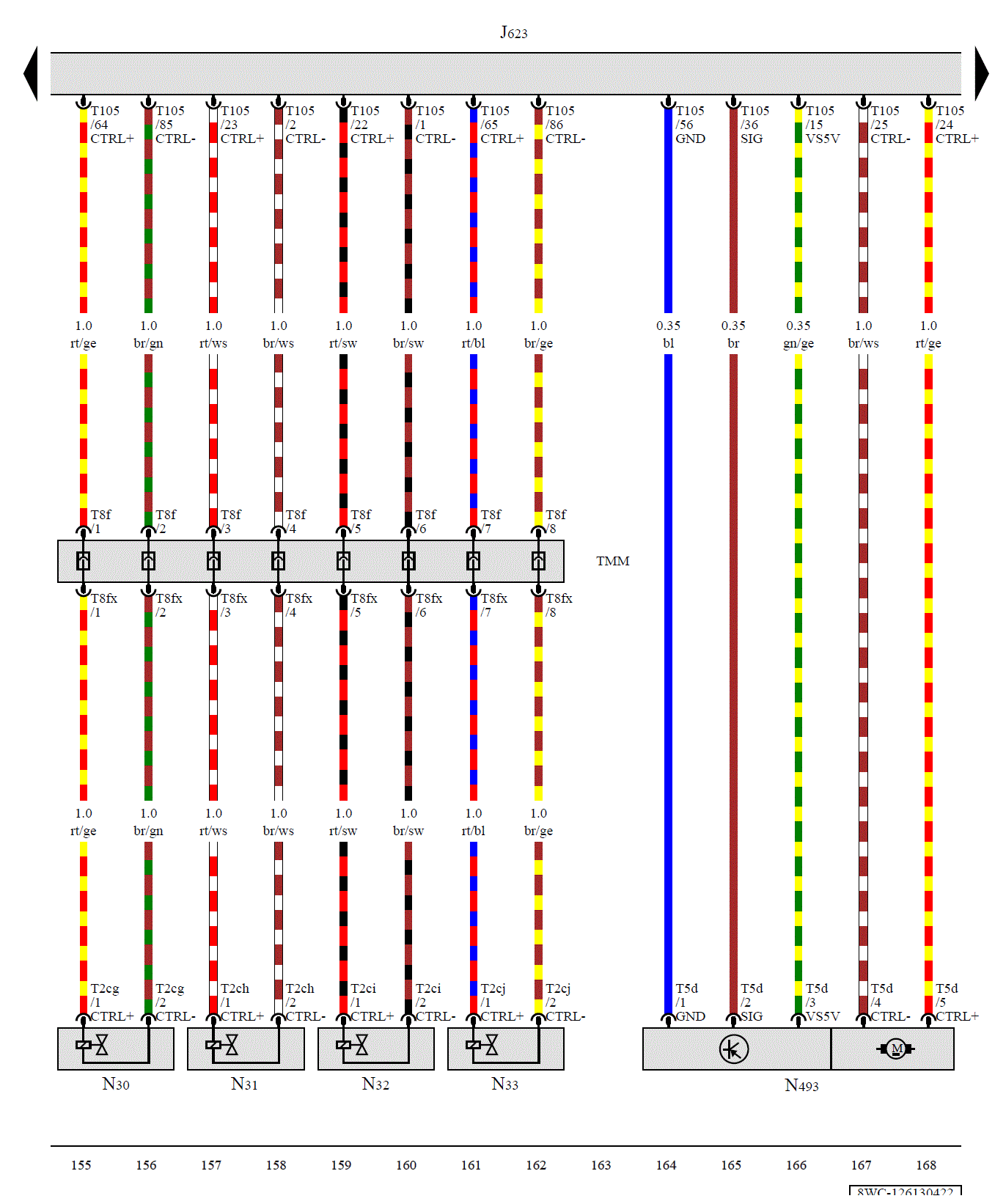

Engine/Motor Control Module, Cylinder 1 Fuel Injector, Cylinder 2 Fuel Injector, Cylinder 3 Fuel Injector, Cylinder 4 Fuel Injector, Engine Temperature Control Actuator

Courtesy of AUDI OF AMERICA, LLC

J623

Engine/Motor Control Module, In the Engine/Motor Compartment, Left Front Type:BT, Slpdok:, Aim:BTJ623

N30

Cylinder 1 Fuel Injector

N31

Cylinder 2 Fuel Injector

N32

Cylinder 3 Fuel Injector

N33

Cylinder 4 Fuel Injector

N493

Engine Temperature Control Actuator Type:BT, Slpdok:, Aim:BTN493

T2cg

2-Pin Connector, Black

T2ch

2-Pin Connector, Black

T2ci

2-Pin Connector, Black

T2cj

2-Pin Connector, Black

T5d

5-Pin Connector, Black

T8f

8-Pin Connector, Black

T8fx

8-Pin Connector, Black

T105

105-Pin Connector, Black

TMM

Coupling Point in Engine/Motor Compartment, Center Type:BT, Slpdok:, Aim:BTTMM
