Component Location Overview - Windshield Wiper System

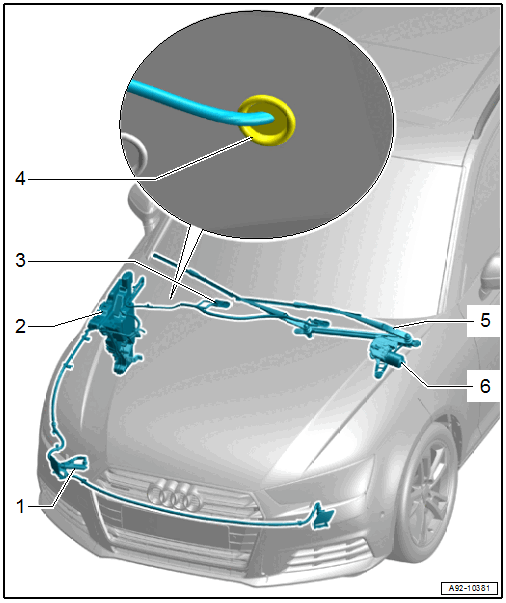

Fig 1: Overview - Windshield Wiper System

Courtesy of AUDI OF AMERICA, LLC

1. Headlamp Washer System Washer Nozzle
   • Overview. Refer to OVERVIEW - HEADLAMP WASHER SYSTEM .
2. Washer Fluid Reservoir
   • Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
3. Washer Nozzle
   • Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
4. Grommet
   • For the washer fluid hose in the hood
5. Windshield Wiper Arm
   • Overview. Refer to OVERVIEW - WINDSHIELD WIPER SYSTEM .
6. Windshield Wiper Motor -V-
   • With the Wiper Motor Control Module -J400-
   • Overview. Refer to OVERVIEW - WINDSHIELD WIPER SYSTEM .
