Overview - Windshield Washer System

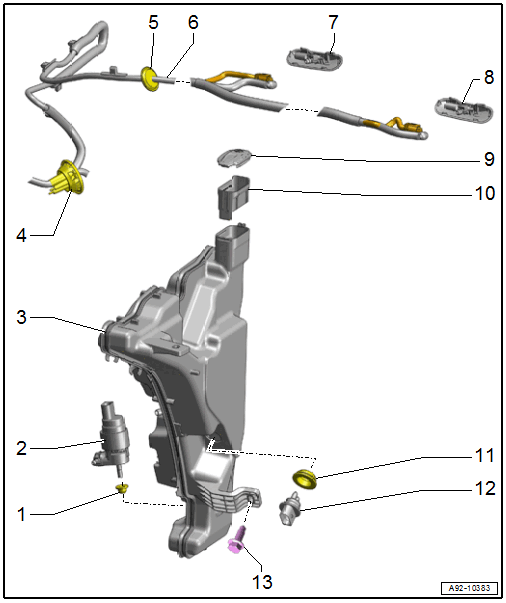

Fig 1: Exploded View Of Windshield Washer System

Courtesy of AUDI OF AMERICA, LLC

Grommet
- Replace if damaged
Windshield Washer Pump -V5-
- For the front and rear window washer system
- Removing and installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING .
Washer Fluid Reservoir
- For front/rear window washer system and headlamp washer system
- Removing and installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
Grommet
- For washer fluid hose/wiring harness in the body
Grommet
- For the washer fluid hose in the hood
Washer Fluid Hose
- To the washer nozzles
Right Washer Nozzle
- With Right Washer Nozzle Heater -Z21-
- Removing and installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
Left Washer Nozzle
- With Left Washer Nozzle Heater -Z20-
- Removing and installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
Cap
- For the filler neck
Screen
Grommet
- Replace if damaged
Windshield Washer Fluid Level Sensor -G33-
- Removing and installing. Refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING .
Nut/Bolt
- 8 Nm
- Quantity: 2
