Component Location Overview - Rear Window Wiper System

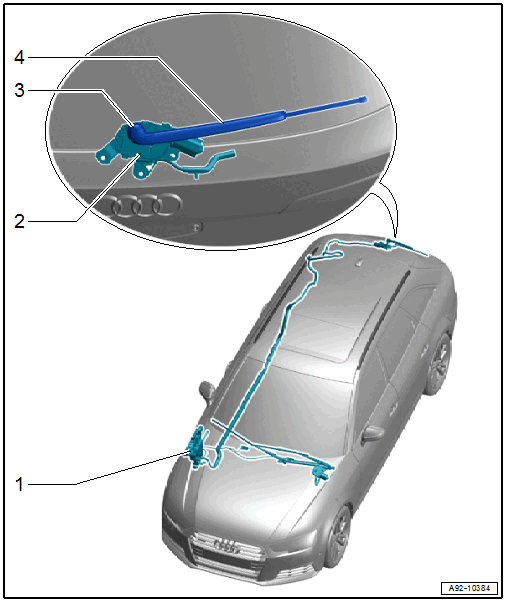

Fig 1: Overview Rear Window Wiper System

Courtesy of AUDI OF AMERICA, LLC

1. Washer Fluid Reservoir
   • Overview. Refer to OVERVIEW - REAR WINDOW WASHER SYSTEM .
2. Rear Window Wiper Motor -V12-
   • Overview. Refer to OVERVIEW - REAR WINDOW WIPER SYSTEM .
3. Washer Nozzle
   • Overview. Refer to OVERVIEW - REAR WINDOW WASHER SYSTEM .
4. Windshield Wiper Arm
   • Overview. Refer to OVERVIEW - REAR WINDOW WIPER SYSTEM .
