Overview - Rear Window Wiper System

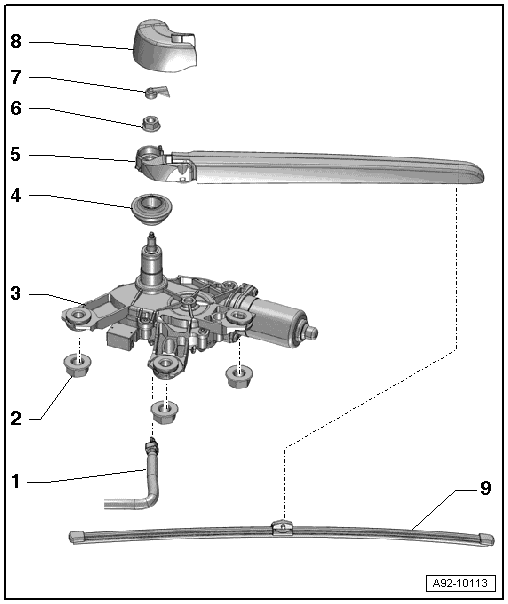

Fig 1: Exploded View Of Rear Window Washer System

Courtesy of AUDI OF AMERICA, LLC

Washer Fluid Hose
- For the rear window washer system
Nut
- 8 Nm
Rear Window Wiper Motor -V12-
- Removing and installing. Refer to Rear Window Wiper Motor -V12-, REMOVING AND INSTALLING .
Rubber Seal
- Replace if damaged
- Removing and installing. Refer to GROMMET, REMOVING AND INSTALLING .
Windshield Wiper Arm
- Removing and installing. Refer to WINDSHIELD WIPER ARM, REMOVING AND INSTALLING .
Nut
- 12 Nm
Washer Nozzle
Rear Window Wiper Cap
Wiper Blade
- Replacing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
