Overview - Covers On Fender

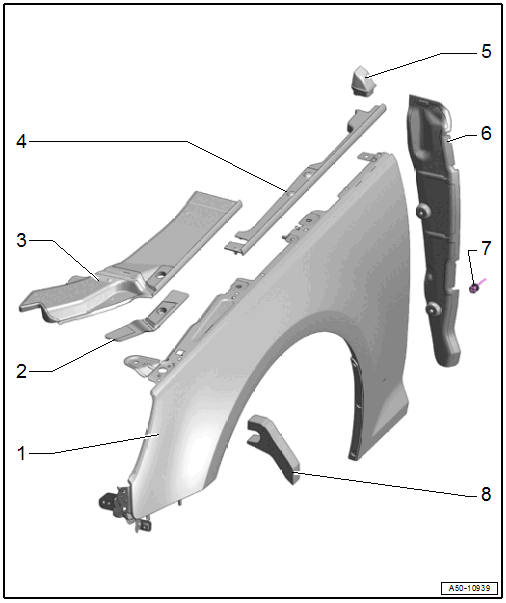

Fig 1: Exploded View Of Covers on Front Fender With Components

Courtesy of AUDI OF AMERICA, LLC

1. Fender
   • Removing and Installing. Refer to FENDER, REMOVING AND INSTALLING .
2. Cover
   • Front
   • Version: small
   • Removing and Installing. Refer to FENDER FRONT COVER, REMOVING AND INSTALLING, SMALL VERSION .
3. Cover
   • Front
   • Version: large
   • Removing and Installing. Refer to FENDER FRONT COVER, REMOVING AND INSTALLING, LARGE VERSION .
4. Cover
   • Replace after removing.
   • Rear
   • Removing and Installing. Refer to REAR FENDER COVER, REMOVING AND INSTALLING .
5. Stop Buffer
   • For hood
   • With a cap nut, depending on the version. Tightening specification: 6 Nm
   • Removing and Installing. Refer to REAR FENDER COVER, REMOVING AND INSTALLING .
6. End Panel
   • Removing and Installing. Refer to END PANEL, REMOVING AND INSTALLING .
7. Expanding Rivet
   • Quantity: 2
8. Seal
   • Inside on the fender

Stop Buffer - Tightening Specification

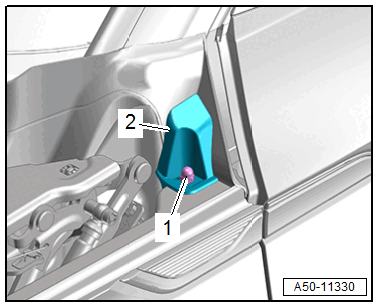

Fig 2: Stop Buffer

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nut -1- for the stop buffer -2- to 6 Nm.
