Overview - Bulkhead

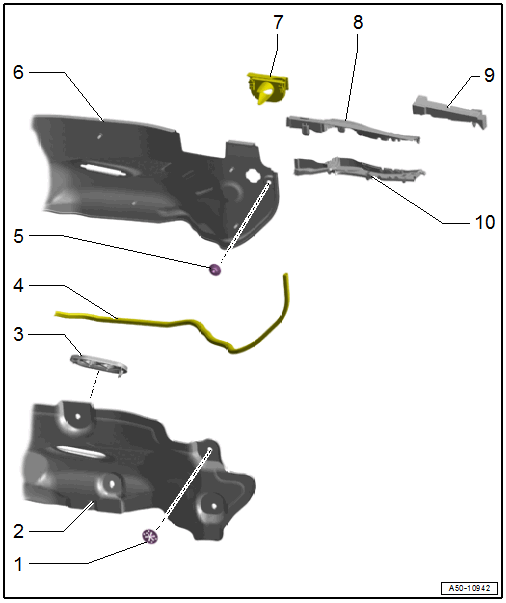

Fig 1: Exploded View Of Bulkhead

Courtesy of AUDI OF AMERICA, LLC

Lock Washer/Nut
- Nut: 2 Nm
Heat Shield
- Overview. Refer to OVERVIEW - HEAT SHIELDS .
Pass-Through
- For coolant lines
- Equipped on some models
- Can be replaced only with the heat shield
Seal
- For the plenum chamber bulkhead
Nut
- 8 Nm
- Quantity: 2
Plenum Chamber Bulkhead
- Removing and Installing. Refer to PLENUM CHAMBER BULKHEAD, REMOVING AND INSTALLING .
Pass-Through
- For the wiring harness
Cover
- For the plenum chamber end plate
- Upper
Molded Part
- For the plenum chamber end plate
Cover
- For the plenum chamber end plate
- Lower
