Plenum Chamber Side Cover, Removing And Installing: Removing

-- Remove the rear cover for the fender. Refer to REAR FENDER COVER, REMOVING AND INSTALLING .

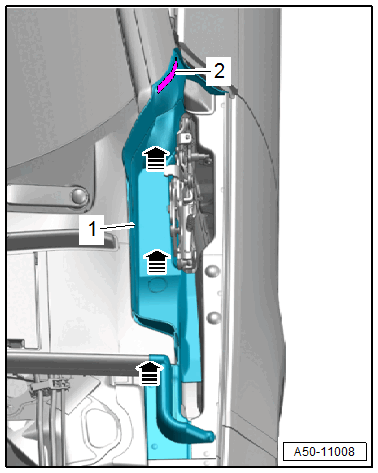

-- Use the :VAS1978/14A  to warm up the cover -1- carefully near the A-pillar.

GWWA50-11008Courtesy of AUDI OF AMERICA, LLC

-- Pry out the cover in direction of -arrows- and remove it carefully near the bonding -2-.
