Overview - Bumper Cover, RS4 From Product Improvement

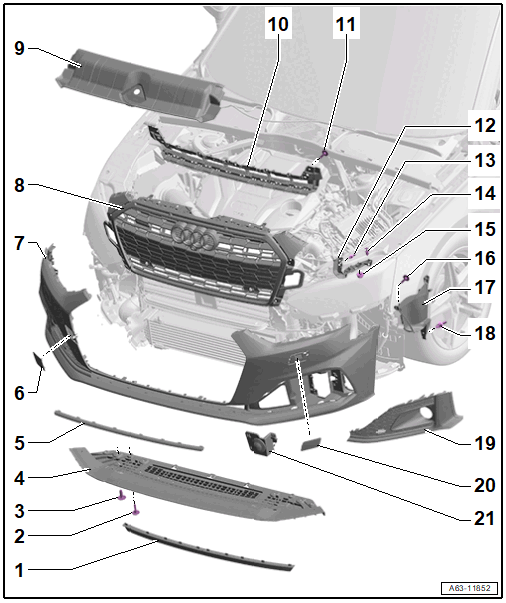

Fig 1: Exploded View Of Front Bumper Cover (A5 Basic/Lines From Product Improvement)

Courtesy of AUDI OF AMERICA, LLC

1. Front Spoiler
   • Removing and Installing. Refer to FRONT SPOILER, REMOVING AND INSTALLING, RS 4 AND A5 .
2. Bolt
   • Tightening specification OVERVIEW - COVERS AND AIR GUIDES
3. Bolt
   • Tightening specification OVERVIEW - COVERS AND AIR GUIDES
4. End Panel
   • The bumper cover
   • Overview. Refer to OVERVIEW - COVERS AND AIR GUIDES .
5. Trim Molding
   • Center
   • Removing and Installing. Refer to CENTER TRIM MOLDING, REMOVING AND INSTALLING .
6. Towing Eye Cover
7. Bumper Cover
   • Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
   • Adjusting. Refer to BUMPER COVER, ADJUSTING .
8. Radiator Grille
   • Overview. Refer to OVERVIEW - RADIATOR GRILLE .
9. Lock Carrier Cover
   • Overview. Refer to OVERVIEW - COVERS AND AIR GUIDES .
10. Air Intake Grille
    • Center
    • Removing and Installing. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING, A5 BASIC/LINES FROM PRODUCT IMPROVEMENT .
11. Bolt
    • 2 Nm
    • Quantity: 7
12. Mount
    • For the bumper cover
    • Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
13. Bolt
    • 4 Nm
14. Expanding Rivet
15. Nut
    • 4 Nm
    • Quantity: 2
16. Bolt
    • 2 Nm
    • Quantity: 2
17. Air Duct
    • Side
    • Removing and Installing. Refer to AIR GUIDE, REMOVING AND INSTALLING, A5, RS 4 AND RS 5 .
18. Expanding Rivet
19. Air Intake Grille
    • Side
    • Overview. Refer to OVERVIEW - COVERS AND AIR GUIDES .
20. Washer Nozzle Cover
    • For the headlamp washer system
    • Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING .
21. Trim
    • Only for equipment versions without Control Module for Adaptive Cruise Control -J428-
    • Clipped in the bumper cover.
