Overview - Covers And Air Guides

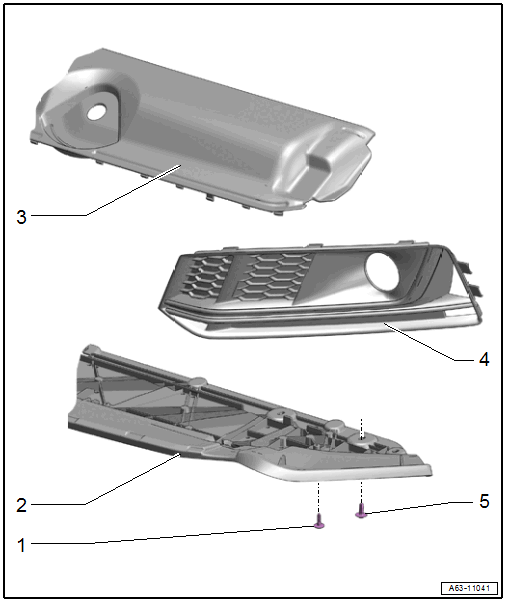

Fig 1: Identifying Covers & Air Guides

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 2 Nm
- Quantity: 4
End Panel
- The bumper cover
- A5 with Spoiler: removing and installing. Refer to FRONT SPOILER, REMOVING AND INSTALLING, RS 4 AND A5 .
- Removing and Installing. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING .
Lock Carrier Cover
- Removing and Installing. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .
Air Intake Grille
- Side
- Removing and Installing. Refer to SIDE AIR INTAKE GRILLE, REMOVING AND INSTALLING .
Bolt
- 5 Nm
- Quantity: 5
