Molded Foam Part Mount, Removing And Installing: Removing

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the front parking aid sensor. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .

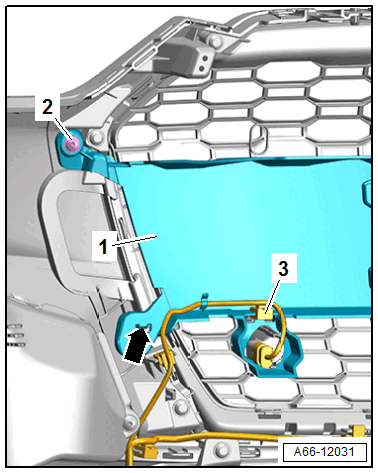

-- Free up the wiring harness -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2-.

-- RS 4 and RS 5: disconnect the catch -arrow- or in this position remove the bolt and mount -1-.
