Adjustment Dimensions

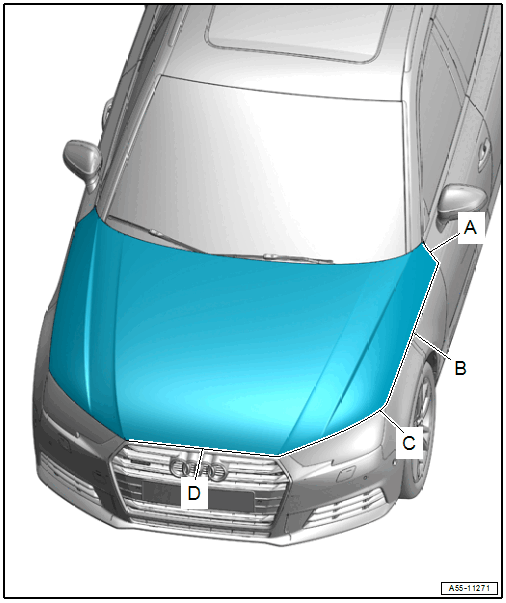

Fig 1: Adjustment Dimensions

Courtesy of AUDI OF AMERICA, LLC

A - Front Lid to Front Door
- Gap dimension = 3.2 mm
B - Hood to Fender
- A4: gap dimension = 3.0 mm
- A5: gap dimension = 3.5 mm
C - Hood to Headlamp
- A4: gap dimension = 3.5 mm
- A5: gap dimension = 4.4 mm
D - Hood to Radiator Grille
- A4: gap dimension = 4.5 mm
- A5: gap dimension = 4.4 mm
