Height Adjustment at Striker

Courtesy of AUDI OF AMERICA, LLC

-- Install the adjusting buffer completely. Refer to HEIGHT, ADJUSTING USING ADJUSTING BUFFER .

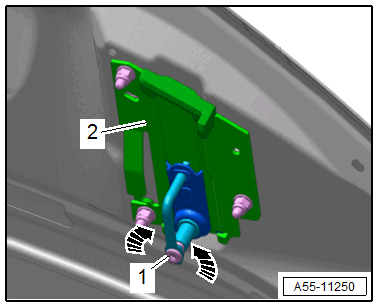

-- Adjust the striker -2- by turning the adjusting screw -1- in direction of -arrows-.

• During the closing test, the hood must fall from the balance position into the latch and engage completely.

-- Adjust the striker height if necessary.
