Height Adjustment with Front Adjusting Buffer

Courtesy of AUDI OF AMERICA, LLC

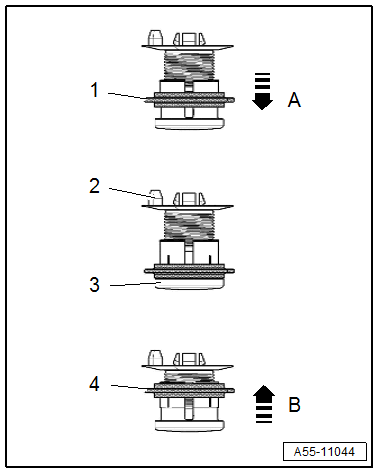

-- Open the hood and release the retainer -1- in direction of -arrow A-.

-- Completely remove the stop -3- from the adjusting buffer -2-.

-- Place the hood slowly on the stop until the hood gap dimension to the fender is reached.

-- Open the hood and lock the retainer -4- in direction of -arrow B-.
