Home >> Audi >> 2021 >> A4 Quattro Premium Plus, 2.0L Eng VIN B >> Repair and Diagnosis (Single Page) >> Body & Frame >> Exterior Body Panels >> Hood, Lids >> 55 Hood, Lids >> Hood >> Insulation, Removing And Installing >> Removing

Insulation, Removing And Installing: Removing

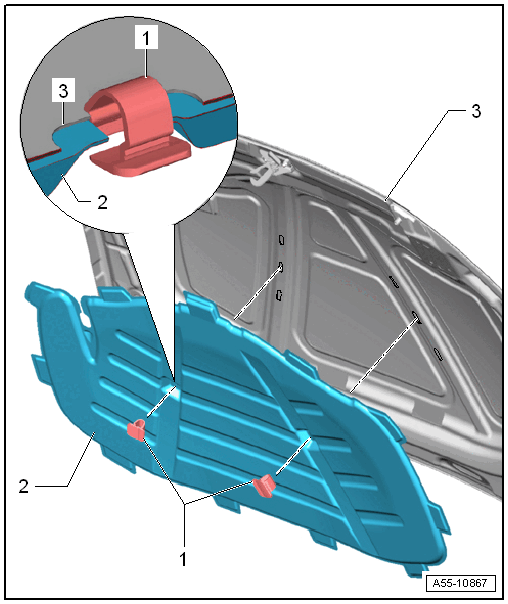

-- Release the clips -1- and remove the insulation -2-.

GWWA55-10867

Courtesy of AUDI OF AMERICA, LLC
