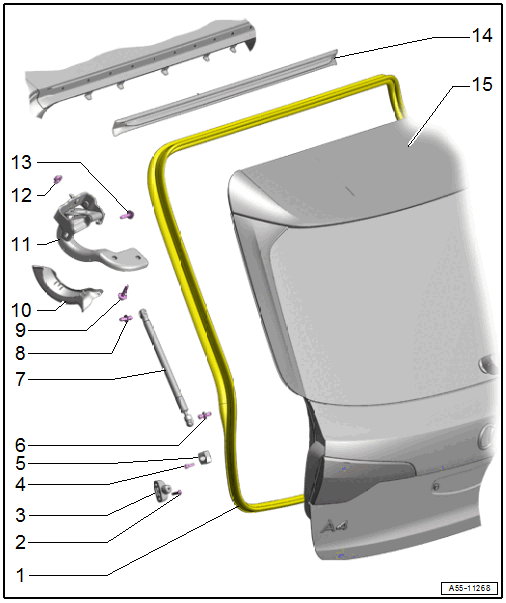

Overview - Rear Lid
- Rear Lid Seal
- Removing and Installing. Refer to REAR LID SEAL, REMOVING AND INSTALLING, A4 AVANT BEFORE PRODUCT IMPROVEMENT .
- Bolt
- 8 Nm
- Quantity: 2
- Adjusting Buffer
- Removing and Installing. Refer to ADJUSTING BUFFER, REMOVING AND INSTALLING, A4 AVANT AND A5 SPORTBACK .
- Adjusting. Refer to HEIGHT, ADJUSTING USING ADJUSTING BUFFER .
- Bolt
- 8 Nm
- Stop
- For the adjusting buffer
- Removing and Installing. Refer to ADJUSTING BUFFER STOP, REMOVING AND INSTALLING, A4 AVANT AND A5 SPORTBACK .
- Ball Pin
- 21 Nm
- Gas-Filled Strut
- Removing and Installing. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .
- Venting. Refer to GAS-FILLED STRUT, VENTING .
- Ball Pin
- 21 Nm
- Bolt
- 30 Nm
- Quantity: 2
- Rear Lid Hinge Trim Panel
- Removing and Installing. Refer to OVERVIEW - REAR LID LOWER TRIM PANEL .
- Hinge
- Removing and Installing. Refer to HINGES, REMOVING AND INSTALLING, A4 AVANT .
- Nut
- 21 Nm
- Bolt
- 21 Nm
- Roof Frame Cover
- Replace after removing.
- Removing and Installing. Refer to ROOF FRAME COVER, REMOVING AND INSTALLING, A4 AVANT .
- Rear Lid
- Equipment version: with vibration damper OVERVIEW - REAR LID, A5 SPORTBACK
- Removing and Installing. Refer to REAR LID, REMOVING AND INSTALLING, A4 AVANT .
- Adjusting. Refer to REAR LID, ADJUSTING .
