Overview - Rear Lid Release

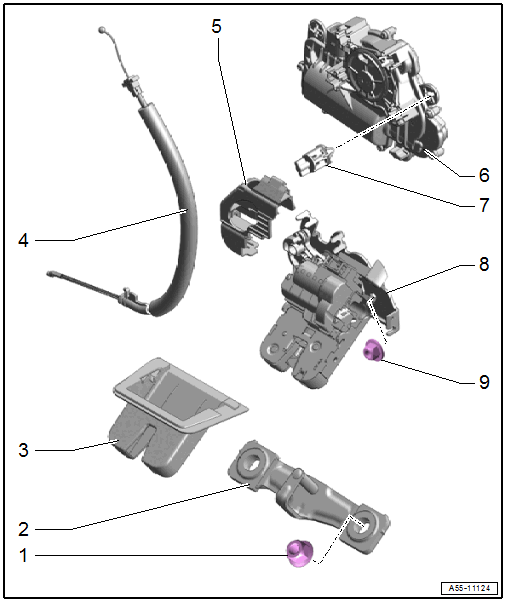

Fig 1: Exploded View Of Rear Lid Release

Courtesy of AUDI OF AMERICA, LLC

Nut
- 21 Nm
- Quantity: 2
Striker
- Removing and Installing. Refer to STRIKER, REMOVING AND INSTALLING .
- Adjusting. Refer to HEIGHT ADJUSTMENT AT STRIKER .
Rear Lid Latch Trim Panel
- Removing and Installing. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .
Closing Assist Release Cable
- Removing and Installing. Refer to CLOSING ASSIST RELEASE CABLE, REMOVING AND INSTALLING .
Anti-Theft Protection
- For the latch
Rear Lid Closing Assist Motor -V382-
- Removing and Installing. Refer to Rear Lid Closing Assist Motor -V382-, REMOVING AND INSTALLING .
Locking Element
- For the closing assist
Latch
- Rear Lid Lock Unit -VX25-
- With Rear Lid Central Locking System Motor -V53-, Lock Pawl Contact Switch -F443-, equipped on some models: Rear Lid Contact Switch -F111-
- Removing and Installing. Refer to LATCH, REMOVING AND INSTALLING .
Nut
- 21 Nm
- Quantity: 2
