Overview - Sensor-Controlled Power Rear Lid Opener, Version 1

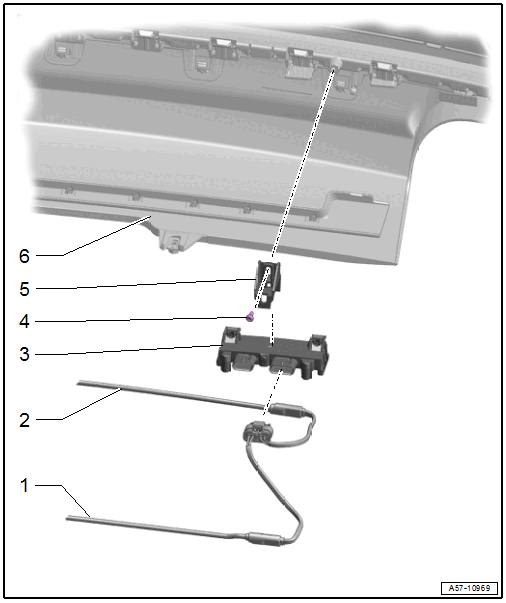

Fig 1: Exploded View Of Electric Rear Lid Release, A4 Sedan, A5 Coupe And A5 Cabriolet

Courtesy of AUDI OF AMERICA, LLC

1. Power Rear Lid Opening Sensor -G750-
   • Removing and Installing. Refer to POWER REAR LID OPENING SENSORS -G750- / -G760-, REMOVING AND INSTALLING, VERSION 1 .
2. Power Rear Lid Opening Sensor 2 -G760-
   • Removing and Installing. Refer to POWER REAR LID OPENING SENSORS -G750- / -G760-, REMOVING AND INSTALLING, VERSION 1 .
3. Power Rear Lid Opening Control Module -J938-
   • Removing and Installing. Refer to Power Rear Lid Opening Control Module -J938-, REMOVING AND INSTALLING, VERSION 1 .
4. Bolt
   • 2 Nm
5. Bracket
6. Rear Bumper Cover
